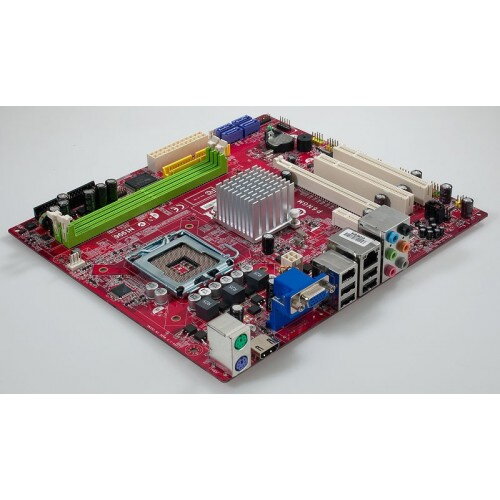

MSI P6NGM

Supported CPU

CPU Socket Type

LGA 775

CPU Type

Core 2 Quad / Core 2 Duo / Pentium D / Celeron

FSB

1333/1066MHz
Chipsets

Chipset

NVIDIA GeForce 7150

South Bridge

nForce 630i
Memory

Number of Memory Slots

2Ã240pin

Memory Standard

DDR2 800

Maximum Memory Supported

4GB
Expansion Slots

PCI Express x16

1

PCI Express x1

1

PCI Slots

2
Storage Devices

PATA

1 x ATA100 2 Dev. Max

SATA 3Gb/s

4

SATA RAID

0/1/0+1/5/JBOD
Onboard Video

Onboard Video Chipset

NVIDIA GeForce 7150
Onboard Audio

Audio Chipset

Realtek ALC888

Audio Channels

8 Channels
Onboard LAN

LAN Chipset

Realtek 8211BL

Max LAN Speed

10/100/1000Mbps
Rear Panel Ports

PS/2

2

Video Ports

D-Sub

HDMI

1 x HDMI

USB 1.1/2.0

4 x USB 2.0

IEEE 1394

1 x IEEE 1394a

Audio Ports

6 Ports
Internal I/O Connectors

Onboard USB

6 x USB 2.0
Physical Spec

Form Factor

Micro ATX

Dimensions (W x L)

9.5" x 8.8"

Windows Vista

Certified for Windows Vista

Power Pin

24 Pin

+I/O shield krytka
