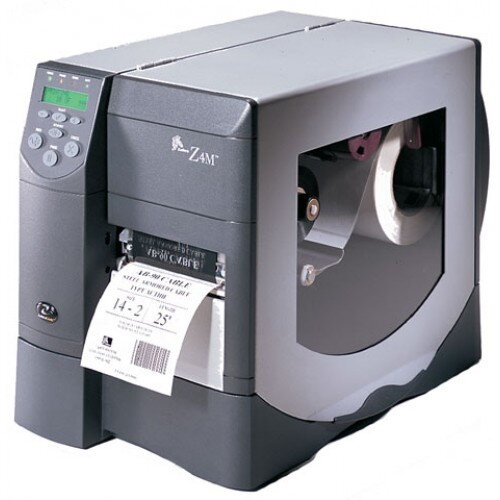

Zebra Z4MPlus

SPECS
GENERAL
Printer TypeLabel printer - direct thermal / thermal transfer - monochrome
Packaged Quantity1
ManufacturerZebra Technologies
PRINTER
Technologydirect thermal / thermal transfer
Print SpeedUp to 600 inch/min - B/W - 203 dpi
Built-in Devicescutter, status LCD
Connectivity Technologywired
InterfaceParallel, serial
Language SimulationZBI, ZPL, ZPL II
Fonts Included7 x bitmapped
1 x scalable
BarcodesCODABLOCK, Codabar, Code 11, Code 128A, Code 128B, Code 128C, Code 2 of 5, Code 39, Code 49, Code 93, Data Matrix, EAN-UCC Composite, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI-Plessey, MaxiCode, MicroPDF417, PDF417, PLANET, Plessey, Postnet, QR code, TLC39, UPC, UPC-A, UPC-E
Typelabel printer
Max Media Size (Standard)Roll (4.5 in)
Max H-Document Size4.5 m
Max Printing Width4.09 in
Max Printing Length174 in
Media Typecontinuous forms, fanfold paper, labels, tickets
Media SizesRoll (1 in), Roll (4.5 in)
POWER DEVICE
Typepower supply
Nominal VoltageAC 120/230 V
Frequency Required50/60 Hz
Form Factorinternal
CAMERA
Installed Size2 MB
BATTERY
Form Factornone
MISCELLANEOUS
Microsoft CertificationsCompatible with Windows 7
POWER
Frequency Required50/60 Hz
RAM
Technology / Form FactorSDRAM
TechnologySDRAM
FLASH MEMORY
Flash Memory2 MB
ENVIRONMENTAL PARAMETERS
Humidity Range Operating20 - 85%
Min Operating Temperature41 °F
Max Operating Temperature104 °F
PRINTING
Max Resolution B/W203 dpi
MEDIA HANDLING
Max Media Size (Custom)4.5 in
Max Printing Width4.09 in
Max Printing Length174 in
Media Thickness Range0.0023 in - 0.01 in
Roll Maximum Outer Diameter8 in
Roll Core Diameter3 in
Media TypeLabels, continuous forms, fanfold paper, tickets
Media SizesRoll (4.5 in), Roll (1 in)
COPIER
Copier Typenone
DOCUMENT & MEDIA HANDLING
Media Type Classother
Media Size ClassOther
HEADER
BrandZebra
Product LineZebra
ModelZ4Mplus
Packaged Quantity1
CompatibilityPC
OFFICE MACHINE
Typeprinter
Functionsprinter
Printing Technologydirect thermal / thermal transfer
Printing Output Typemonochrome
DIMENSIONS & WEIGHT
Width10.9 in
Depth18.7 in
Height13.3 in
Weight33.07 lbs
INTERFACE REQUIRED
Connector Type36 pin Centronics
TypeRS-232, parallel
Total Qty1
EXPANSION BAYS
Typenone
PHYSICAL CHARACTERISTICS
Weight33.07 lbs
LABEL PRINTER
Roll Maximum Outer Diameter8 in
Roll Core Diameter3 in
SLOT REQUIRED
Typenone
OPERATING SYSTEM / SOFTWARE
TypeDrivers & Utilities
PRINTER OUTPUT
Max Speed600 inch/min
Resolution203 dpi
Output QualityB/W
PRINTER MEDIA
Media Load Typemanual
Media Feeder Qty1
Media Feeder Max FormatRoll (4.5 in)
Media Feeder Capacity1 rolls
PRINTER FONTS
Font Included Typebitmapped, scalable
Fonts Included Qty1, 7
PC CONNECTIVITY
Interfaceparallel, serial
BARCODE
BarcodesCODABLOCK, Codabar, Code 11, Code 128A, Code 128B, Code 128C, Code 2 of 5, Code 39, Code 49, Code 93, Data Matrix, EAN-UCC Composite, EAN/JAN-13, EAN/JAN-8, GS1 DataBar, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI-Plessey, MaxiCode, MicroPDF417, PDF417, PLANET, Plessey, Postnet, QR code, TLC39, UPC, UPC-A, UPC-EGENERAL
ManufacturerZebra Technologies
