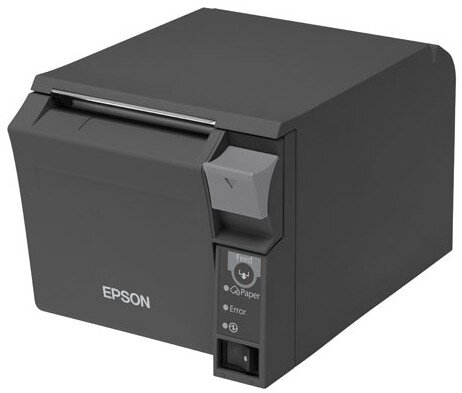

DESCRIPTION
• Fully Refurbished, Cleaned and Tested + 90 Day Warranty
• Free UPS Ground Shipping to Continental USA
• Front-facing controls, paper loading and receipt dispensing
• Thermal Receipt Paper Compatible
• Small compact footprint for under counter applications only 4.5" high!
• Dark Gray Case Color
• Power Supply Included, interface cables sold separately
Full Specifications :
PRINT METHOD Thermal line printing
PRINT RESOLUTION 180 x 180 dpi
PRINT FONTS (True Type) Font A 12(W) x 24(H) mm
Font B 9(W) x 17(H) mm
COLUMN CAPACITY 42/56
CHARACTER SIZE 1.1(W)*2.1(H)/1.5(W)x3(H)mm
CHARACTER SET 95 Alphanumeric
48 International
128x11Graphic
PRINT WIDTH 72mm
BARCODES 9 one-dimensional, 3 two-dimensional
PRINT SPEED 170mm/sec
DATA BUFFER 4K or 45 Bytes selectable
NV RAM 256KB
INTERFACE RS-232, RS-485, Parallel, USB, Powered USB
Ethernet 10 Base – 100 Base TX, IEEE 802.11b
PAPER SPECIFICATION
DIMENSIONS 79.5 ± 0.5mm x 93mm
PAPER THICKNESS Thermal roll paper: 0.06 to 0.07mm
PAPER ROLL Drop in
AUTO CUTTER Partial cut
SENSORS Paper end and Paper near end
CURRENT CONSUMPTION 1.8A (mean)
POWER 24 Volts DC
POWER SUPLY External PS-180
D.K.D. FUNCTION 2 drivers in 1 port
RELIABILITY
MTBF 360,000 hours
MCBF 52 million lines
AUTOCUTTER 1.5 million cuts
OPERATING TEMPERATURE 5º to 45º C
PRINTER OPTIONS
COLOUR Epson Cool White, Epson Dark Grey
EMC STANDARD FCC class A,
CE marking, AS / NZS CISPR22 class B
Safety STANDARD UL / CSA / EN
DRIVERS AVAILABLE APD (Advanced Printer Driver), OPOS and Java POS
OVERALL DIMENSIONS 125mm (W) x 194mm (D) x 114mm (H)
WEIGHT 1.8Kg / 3.97 lbs
