SPECS
GENERAL
Chipset TypeIntel X58 Express / Intel ICH10R
Compatible ProcessorsCore i7 Extreme Edition, Core i7
Processor SocketLGA1366 Socket
Max Processors Qty1
ManufacturerAsus
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
6 x DIMM 240-pin
3 x PCIe 2.0 x16
1 x PCIe 2.0 x16
1 x PCIe x1
2 x PCI
Storage InterfacesIntel ICH10R: SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
JMicron JMB363: ATA-133 -connectors: 1 x 40pin IDC - 2 devices
JMicron JMB363: SATA-300 -connectors: 1 x 7pin external SATA - 1 devices
Internal Interfaces1 x floppy
1 x audio - 4 pin MPC
Additional Connectors (Optional)1 x IEEE 1394 (FireWire), 6 x USB 2.0
Power Connectors24-pin main power connector, 8-pin ATX12V connector
RAID FeaturesIntel Matrix RAID Technology
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 6
TypeFireWire, LAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, SPDIF out, TOSLINK, USB 2.0, audio line-in, audio line-out, audio line-out (center/subwoofer), audio line-out (rear), audio line-out (side surround), microphone
Connector Type6 pin FireWire, mini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network ControllerRealtek RTL8111C
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MISCELLANEOUS
Microsoft CertificationsCompatible with Windows 7
Product Typemotherboard
Compatible with Windows 7"Compatible with Windows 7" software and devices carry Microsoft's assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
AUDIO
Audio CodecRealtek ALC1200
Compliant StandardsHigh Definition Audio
VIDEO
Video Outputnone
AUDIO OUTPUT
Sound Output Mode7.1 channel surround
Compliant StandardsHigh Definition Audio
Typesound card
Audio CodecRealtek ALC1200
AudioHigh Definition Audio (8-channel)
RAM
Max Supported Size24 GB
Featurestriple channel memory architecture
LAN
Network InterfacesGigabit Ethernet
Network ControllerRealtek RTL8111C
SUPPORTED RAM
Bus Clock2000 MHz, 1800 MHz, 1600 MHz, 1333 MHz, 1066 MHz
FeaturesTriple channel memory architecture
Registered or BufferedUnbuffered
SpeedPC3-16000, PC3-14400, PC3-12800, PC3-10666, PC3-8500
TechnologyDDR3
Max Size24 GB
Supported RAM Integrity CheckNon-ECC
HEADER
BrandASUS
Product LineASUS

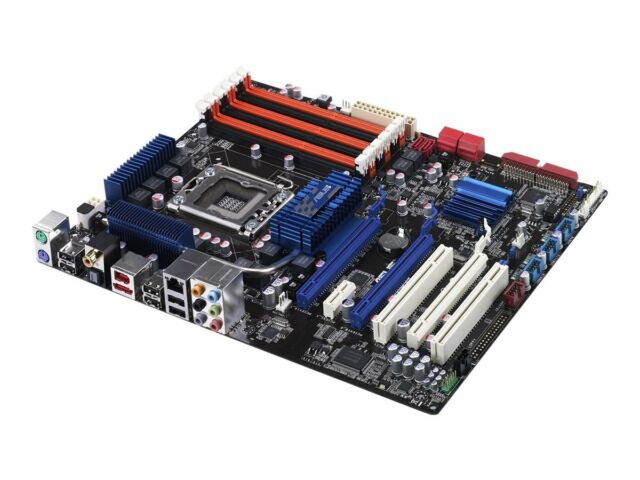

ModelP6T SE
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form FactorATX
Processor SocketLGA1366 Socket
Compatible ProcessorsCore i7, Core i7 Extreme Edition
Chipset TypeIntel X58 Express
I/O ControllerIntel ICH10R
Supported RAM TechnologyDDR3 SDRAM
Supported RAM Speed1066 MHz, 1333 MHz, 1600 MHz, 1800 MHz, 2000 MHz
Supported RAM StandardPC3-10666, PC3-12800, PC3-14400, PC3-16000, PC3-8500
Supported RAM Integrity Checknon-ECC
Supported RAM (Registered or Buffered)unbuffered
RAM Slots6 DIMM slots
Power Connectors24-pin main power connector, 8-pin ATX12V connector
MAINBOARD FEATURES
BIOS TypeAMI
BIOS FeaturesACPI 2.0a support, ASUS EZ Flash 2, ASUS MyLogo2, ASUS O.C. Profile, DMI 2.0 support, Multilingual BIOS, SMBIOS 2.3 support, WfM 2.0 support
Sleep / Wake Upwake on LAN (WOL), wake on ring (WOR)
Hardware FeaturesAMD CrossFireX technology support, ASUS 8+2 Phase Power Design, ASUS AI NET2, ASUS EPU-6 Engine, ASUS Express Gate, ASUS Fan Xpert, ASUS Noise Filter, ASUS Precision Tweaker 2, ASUS Q-Connector, ASUS Q-Shield, ASUS Stepless Frequency Selection (SFS), ASUS TurboV, C.P.R. (CPU Parameter Recall), CrashFree BIOS 3, Intel Extreme Memory Profile (XMP) support, Intel QuickPath Architecture, Stack Cool 2, audio jack detect technology, chassis intrusion detection, heat pipe chipset cooling
INTERFACES
StorageATA-133, Serial ATA-300 (RAID), eSATA port
RAID FeaturesIntel Matrix RAID Technology
USB 3.0 / FireWireFireWire
EXPANSION SLOTS
Total Qty1, 2, 3, 6
TypeCPU, DIMM 240-pin, PCI, PCIe 2.0 x16, PCIe x1
DIMENSIONS & WEIGHT
Width12 in
Depth9.6 in
SOFTWARE
Software IncludedASUS AI Suite, ASUS Live Update, ASUS PC Probe 2, drivers & utilities
STORAGE INTERFACES
ChipIntel ICH10R, JMicron JMB363
InterfaceATA-133, Serial ATA-300
Connector(s)1 x 40pin IDC, 1 x 7pin external SATA, 6 x 7pin Serial ATA
Supported Devices Qty1, 2, 6
RAID (Level)RAID 0 / RAID 1 / RAID 10 / RAID 5
INTERNAL INTERFACES
Typeaudio, floppy
Connector Type4 pin MPC
Qty1
FEATURES
BIOS TypeAMI
Hardware FeaturesChassis intrusion detection, C.P.R. (CPU Parameter Recall), Stack Cool 2, heat pipe chipset cooling, CrashFree BIOS 3, ASUS Q-Connector, ASUS AI NET2, ASUS Noise Filter, ASUS Stepless Frequency Selection (SFS), audio jack detect technology, ASUS Q-Shield, ASUS Precision Tweaker 2, Intel Extreme Memory Profile (XMP) support, ASUS 8+2 Phase Power Design, ASUS Express Gate, ASUS EPU-6 Engine, ASUS Fan Xpert, ASUS TurboV, Intel QuickPath Architecture, AMD CrossFireX technology support
BIOS FeaturesDMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, SMBIOS 2.3 support, ASUS EZ Flash 2, ASUS O.C. Profile, ACPI 2.0a support
Sleep / Wake UpWake on LAN (WOL), wake on ring (WOR)GENERAL
+ I/O shield krytka
