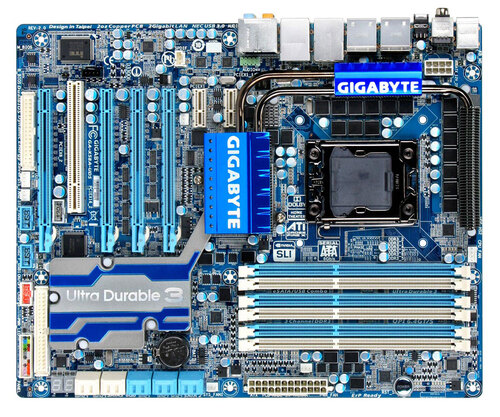

Gigabyte GA-EX58-UD5

SPECS:

CPU
Support for an Intel® Core™ i7 series processor in the LGA1366 package
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
QPI
4.8GT/s, 6.4GT/s
Chipset
North Bridge: Intel® X58 Express Chipset
South Bridge: Intel® ICH10R
Memory
6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory(Note 1)
Dual/3 channel memory architecture
Support for DDR3 2200/1333/1066/800 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Audio
Realtek ALC889 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for Dolby® Home Theater
Support for S/PDIF In/Out
Support for CD In
LAN
2 x RTL8111E chip (10/100/1000 Mbit)
Support for Teaming
Support Smart Dual LAN
Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2) (Note 2)
2 x PCI Express x16 slot, running at x8 (PCIEX8_1/PCIEX8_2) (Note 3) (The PCIEX16_1, PCIEX16_2, PCIEX8_1 and PCIEX8_2 slots conform to PCI Express 2.0 standard.)
2 x PCI Express x1 slots
1 x PCI slot
Multi-Graphics Technology
Support for 2-Way/3-Way ATI CrossFireX™/NVIDIA SLI technology
Storage Interface
South Bridge:
6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Marvell 9128 chip:
2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
Support for SATA RAID 0, and RAID 1
* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
* SATA3 SSDs are not recommended for use in RAID 0 mode on Marvell SE9128 ports.

GIGABYTE SATA2 chip:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2 x SATA 3Gb/s connectors (GSATA2_8, GSATA2_9) supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD
JMicron JMB362 chip:
2 x eSATA 3Gb/s connectors (eSATA/USB Combo) on the back panel sup- porting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Integrated in the South Bridge
Up to 10 USB 2.0/1.1 ports (6 on the back panel, including 2 eSATA/USB Combo, 4 via the USB brackets connected to the internal USB headers)
NEC chip:
Up to 2 USB 3.0/2.0 ports on the back panel
* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
IEEE 1394
T.I. TSB43AB23 chip
Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
8 x SATA 3Gb/s connectors
2 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x power fan header
1 x North Bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
3 x USB 2.0/1.1 headers
1 x IEEE 1394a header
1 x power button
1 x reset button
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
1 x clearing CMOS button
2 x IEEE 1394a ports
4 x USB 2.0/1.1 ports
2 x USB 3.0 ports
2 x eSATA/USB Combo connectors
2 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
iTE IT8720 chip
H/W Monitoring
System voltage detection
CPU/North Bridge temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU fan fail warning
CPU/System fan speed control (Note 4)
BIOS
2 x 16 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune (Note 5)
Support for Dynamic Energy Saver™ 2
Support for Smart 6™
Support for Auto Green
Support for eXtreme Hard Drive
Support for ON/OFF Charge
Support for Q-Share
Bundled Software
Norton Internet Security (OEM version)
Operating System
Support for Microsoft® Windows® 7/Vista/XP
Form Factor
ATX Form Factor; 30.5cm x 24.4cm

+I/O shield krytka
