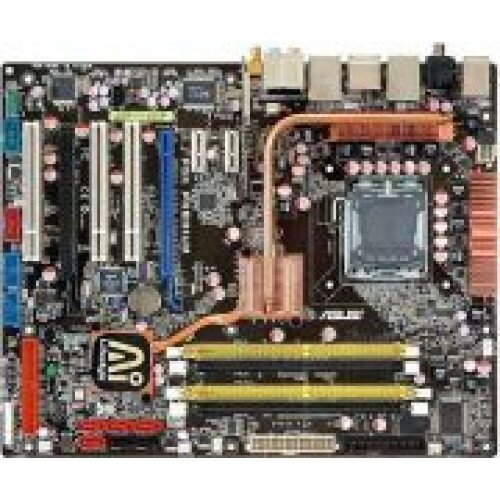

ASUS P5K Premium/WiFi-AP

CPU LGA775 socket for Intel® Coreâ¢2 Quad / Coreâ¢2 Extreme / Coreâ¢2 Duo / Pentium® Extreme / Pentium® D / *Pentium® 4 Processors

Compatible with Intel® 05B/05A/06 processors

Support Intel® next generation 45nm Multi-Core CPU

Chipset Intel® P35 / ICH9R with Intel® Fast Memory Access Technology

Front Side Bus 1333 / 1066 / 800 MHz

Memory 4 x DIMM, max. 8GB, DDR2 1066*/800 / 667 MHz, non-ECC, un-buffered memory

Dual channel memory architecture

"* The chipset officially supports the memory frequency up to DDR2 800MHz. Tuned by ASUS Super Memspeed Technology, this motherboard natively supports up to DDR2 1066MHz

Please refer to www.asus.com or user manual for Memory QVL."



Expansion Slots 2 x PCI-E x16 (blue @ x16 mode, black @ x4 or x1 mode) supports CrossFire Technology

2 x PCI-E x1

3 x PCI

Storage Southbridge

- 6 x SATA 3.0 Gb/s ports

- Supports RAID 0, 1, 5 and 10

JMicron® JMB363 PATA and SATA controller

- 1 x UltraDMA 133/100/66 for up to 2 PATA devices

- 2 x External SATA 3.0 Gb/s port (SATA On-the-Go)

- Supports SATA RAID 0,1 and JBOD

LAN Dual Gigabit LAN controllers, featuring AI NET2

Marvell88E8056® PCI-E Gigabit LAN controllers

RealtekRTL8110SC® PCI Gigabit LAN controller

Wireless LAN ASUS WiFi-AP Solo

54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b

- Software Access Point mode

- Station mode : Infrastruceure mode and Ad-Hoc mode

Audio ADI® AD1988B 8-channel High Definition Audio CODEC

- Coaxial / Optical S/PDIF out ports at back I/O

- ASUS Noise Filter

IEEE 1394 IEEE 1394a controller supports 2 x 1394a ports (one at midboard; one at back panel)

USB 10 x USB 2.0 ports (4 ports at mid-board, 6ports at back panel)

ASUS AI Lifestyle Features ASUS Quiet Thermal Solution:

- ASUS Fanless Design: Heat-pipe solution

- ASUS Fanless Design: Stack Cool 2

- ASUS AI Gear2

- ASUS AI Nap

- ASUS 8-Phase Power Design

- ASUS Q-Fan 2

ASUS Crystal Sound:

- ASUS AI Audio 2

- ASUS Noise Filter

ASUS EZ DIY:

- ASUS Q-Connector

- ASUS O.C. Profile

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

- ASUS AI Slot Detector

ASUS WiFi@Home

- ASUS WiFi-AP Solo

Other Features ASUS MyLogo 3

Multi-language BIOS

Overclocking Features Intelligent overclocking tools:

- AI NOS⢠(Non-delay Overclocking System)

- ASUS AI Booster utility

Precision Tweaker:

- vCore: Adjustable CPU voltage at 0.0125V increment

- vDIMM: 16-step DRAM voltage control

- vChipset: 4-step Chipset voltage control

SFS (Stepless Frequency Selection)

- FSB tuning from 200MHz up to 800MHz at 1MHz increment

- Memory tuning from 667MHz up to 1333MHz for DDR2

- PCI Express frequency tuning from 100MHz up to150MHz at 1MHz increment

Overclocking Protection:

- ASUS C.P.R.(CPU Parameter Recall)

Back Panel I/O Ports 1 x PS/2 Keyboard

1 x S/PDIF Out (Coaxial + Optical)

2 x External SATA

1 x IEEE1394a

2 x RJ45 port

6 x USB 2.0/1.1

1 x WiFi-AP Solo antenna jack

8-channel Audio I/O

Internal I/O Connectors 2 x USB connectors support additional 4 USB ports

1 x Floppy disk drive connector

1 x IDE connector

1 x COM connector

6 x SATA connectors

1 x CPU Fan connector

4 x Chassis Fan connector

1 x Power Fan connector

1 x IEEE1394a connector

Front panel audio connector

1 x S/PDIF Out Header

Chassis Intrusion connector

CD audio in

24-pin ATX Power connector

2 x 4-pin ATX 12V Power connector

System Panel(Q-Connector)

BIOS 16 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3



Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

O/S Compatibility Windows Vista/XP

Accessories UltraDMA 133/100/66 cable

FDD cable

4 x Serial ATA cables

1 x 2-port Serial ATA power cable

I/O Shield

User's manual

ASUS WiFi-AP Solo manual

3 in 1 Q-connector

1 x 2-port USB2.0 / 1-port IEEE1394 module

ASUS WiFi-AP Solo omni-directional antenna

Support Disc Drivers

ASUS PC Probe II

ASUS Update

ASUS AI Suite

ASUS WiFi-AP Solo Wizard

Anti-virus software (OEM version)

Image-Editing Suite

Form Factor ATX Form Factor, 12"x 9.6" (30.5cm x 24.4cm)
