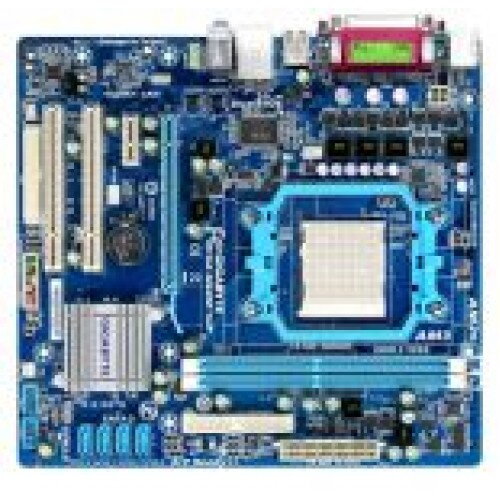

Gigabyte GA-M68M-S2P

CPU
Support for AM3/AM2+/AM2 processors: AMD Phenom™ II processor/ AMD Phenom™ processor/AMD Athlon™ II processor/ AMD Athlon™ processor/AMD Sempron™ processor
* If you install AMD AM3/ AM2+ CPU on AM2 motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3/ AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
Hyper Transport Bus
2000 MT/s
Chipset
NVIDIA® GeForce 7025/nForce 630a chipset
Memory
2 x 1.8V DDR2 DIMM sockets supporting up to 8GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR2 1066/800/667/533 MHz memory modules
* DDR2 1066 is supported with combination of AM3/ AM2+ processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
Audio
Realtek ALC888B codec
High Definition Audio
2/4/5.1/7.1-channel (Note 2)
Support for S/PDIF In/Out
Support for CD In
LAN
Onboard Realtek RTL8211CL (10/100/1000Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
2 x PCI slots
Storage Interface
NVIDIA® GeForce 7025/nForce 630a chipset

1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
4x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
Support for RAID 0, RAID 1, RAID 5, RAID 10 and JBOD
iTE IT8720 chip:

1 x floppy disk drive connector supporting up to 1
floppy disk drive
USB
Integrated in the NVIDIA® GeForce 7025/nForce 630a chipset

Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x floppy connector
1 x IDE connectors
1 x SATA 3Gb/s connectors
1 x CPU fan connector
1 x system fan connector
1 x front panel connector
1 x front panel audio connector
1 x CD In connector
1 x SPDIF In/Out connector
2 x USB 2.0/1.1 connectors for additional 4 USB 2.0/1.1 ports by cables
1 x clearing CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x serial port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In / Line Out / MIC In)
I/O Controller
iTE IT8720 chip
H/W Monitoring
System voltage detection
CPU / System temperature detection
CPU / System fan speed detection
CPU / System warning temperature
CPU / System fan failure warning
CPU fan speed control (Note 3)
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Unique Features
Supports @BIOS
Supports Q-Flash
Support for Xpress BIOS Rescue
Supports Download Center
Supports Xpress Install
Supports Xpress Recovery2
Supports EasyTune(Note 4)
Support for Auto Green
Support for On/Off Charge
Bundle Software
Norton Internet Security (OEM version)
Operating System
Support for Microsoft Windows 7/Vista/XP
Form Factor
Micro ATX form factor; 24.4cm x 22.5cm

+I/O shield krytka
