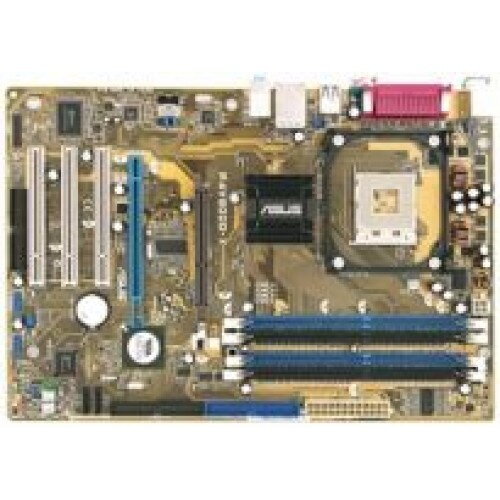

ASUS P4V800D-X

CPU
Socket 478 for Intel Pentium 4/ Celeron up to 3.4GHz+

Intel® Hyper-Threading Technology ready
Chipset
VIA PT880 Ultra

VIA VT8237R+
Front Side Bus
800/533/400MHz
Memory
Dual Channel Memory Architecture

4 x 184-pin DIMM Sockets support max. 4GB

PC3200/PC2700/PC2100 non-ECC DDR SDRAM memory
Expansion Slots
1 x AGP 8X

1 x PCI Express x16 (x4 mode only)

3 x PCI
Storage/RAID
2 x UltraDMA 133/100/66/33

2 x Serial ATA with RAID 0, 1 function
Audio
ADI AD1888 SoundMAX 6-channel audio CODEC

Support S/PDIF out Interface
LAN
Realtek 10/100 Mbps Ethernet LAN
USB
Max. 8 USB 2.0 ports
Overclocking Features
Intelligent CPU frequency tuner

ASUS JumperFree

CPU and Memory voltage adjustable

ASUS C.P.R.(CPU Parameter Recall)

Adjustable FSB/DDR ratio.

SFS (Stepless Frequency Selection) up to 400MHz at 1MHz
Special Features
Wake on Ring, Lan, USB, Keyboard amp; Mouse

STR (Suspend-to-RAM)

STD (Suspend-to-Disk)

Support S/PDIF out Interface

ASUS C.P.R. (CPU Parameter Recall)

ASUS MyLogo

ASUS EZ Flash

ASUS CrashFree BIOS 2
Back Panel I/O Ports
1 x Parallel

1 x Serial

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Audio I/O

1 x SPDIF out

1 x RJ45

4 x USB 2.0
Internal I/O Connectors
2 x USB 2.0 connector support additional 4 USB 2.0 ports

CPU / Chassis FAN connectors

Front Panel Audio connector

CD / AUX audio in

20-pin ATX Power connector

4-pin ATX 12V Power connector

20 Pin Panel connector
BIOS
4Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI, ASUS EZ Flash, CrashFree BIOS 2, C.P.R., MyLogo2
Industrial Standard
PCI 2.2, USB 2.0
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME
Power Requirement
ATX power supply (with 4-pin 12V plug)
Support Disc
Drivers

ASUS PC Probe

Anti-Virus Software (OEM Version)
Accessories
User's manual

1 x UltraDMA 133/100/66 cable

2 x Serial ATA cable

1 x FDD cable

I/O shield
Form Factor
ATX Form Factor 12"x 8.2" (30.5 cm x 20.8 cm)
