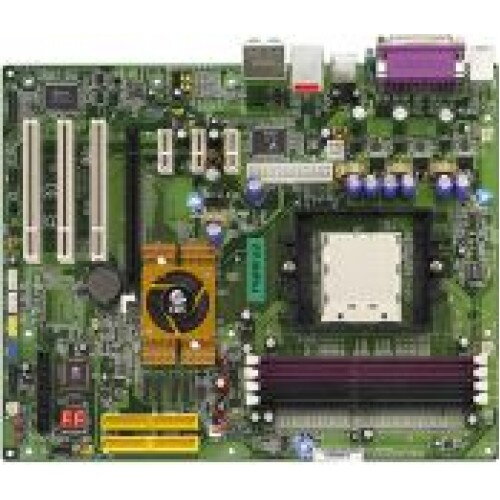

EPoX EP-9NPAJ

Model
Brand
EPoX
Model
EP-9NPAJ
Supported CPU
CPU Socket Type
939
CPU Type
Athlon 64 FX / Athlon 64
FSB
1000MHz Hyper Transport (2000 MT/s)
Chipsets
North Bridge
NVIDIA nForce4
Memory
Number of Memory Slots
4Ã184pin
Memory Standard
DDR 400
Maximum Memory Supported
4GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express x16
1
PCI Express x1
3
PCI Slots
3
Storage Devices
PATA
2 x ATA100 4 Dev. Max
SATA 1.5 Gb/s
4
SATA RAID
0/1/0+1
Onboard Video
Onboard Video Chipset
None
Onboard Audio
Audio Chipset
Realtek ALC850
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
VITESS VSC8201RX
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
PS/2
2
COM
1
LPT
1
USB 1.1/2.0
4 x USB 2.0
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
6 x USB 2.0
Physical Spec
Form Factor
ATX
Dimensions
12.0" x 9.6"
Power Pin
24 Pin
