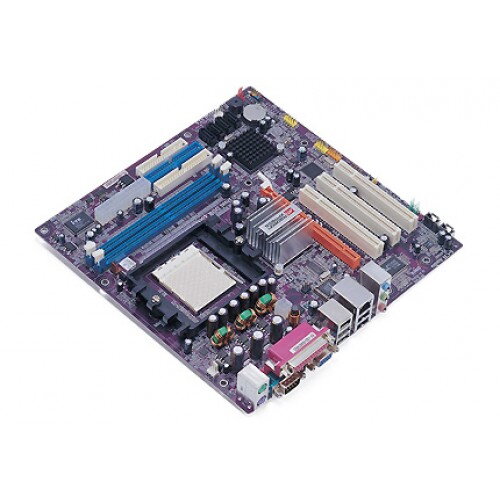

ECS RS482-M (V1.0A)

CPUº Socket 939 for AMD Athlon⢠64 X2 Dual-Core/ Athlon⢠64/ Athlon⢠64 FX processor.º High-performance Hyper Transport CPU interface.º Support transfer rate of 2000/1600/1200/800/400 mega-transfers per second.CHIPSETº ATI® RS482 amp; SB400º North Bridge: ATI® RS482º South Bridge: ATI® SB 400GRAPHICSº On Chip (Radeon X300-based. 2D/3D graphic engine)MEMORYº Dual-channel DDR memory architectureº 2 x 184-pin DDR DIMM socket support up to 2 GBº Support DDR400/333/266 DDR SDRAMDue to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.For Windows® 64-bit OS with 64-bit CPU, there is no such limitationEXPANSION SLOTº 1 x PCI Express x16 slotº 3 x PCI slotsSTORAGEº Supported by SB 400 ⢠4 x Ultra DMA133/100/66 devices ⢠4 x Serial ATA devices ⢠RAID0 amp; RAID1 configurationIEEE 1394a (optional)º TI TSB43AB22A support 2 x IEEE1394a portsAUDIOº Realtek ALC655 6-Channel audio CODECº Compliant with AC'97 2.3 specificationLANº Realtek RTL8100C 10/100 Mbps Fast Ethernet ControllerREAR PANEL I/Oº 1 x PS/2 keyboard amp; PS/2 mouse connectorsº 4 x USB portsº 1 x VGA portº 1 x RJ45 LAN connectorº 1 x 1394a port(optional)º 1 x Parallel port (LPT)º 1 x Serial port (COM1)º 1 x Audio port (Line-in, Line-out, Mic-in)INTERNAL I/O CONNECTORS amp; HEADERSº 1 x 24-pin ATX Power Supply connectorº 1 x 4-pin ATX 12V connectorº 1 x FDD connector supports one 360K~2.88MB FDDº 2 x IDE connectorsº 4 x Serial ATA connectorsº 1 x IrDA for SIR headerº 1 x COM2 header (optional)º 1 x 1394a header(optional)º 2 x USB 2.0 headers support additional 4 USB 2.0 Portsº 1 x TV out headerº 1 x SPDIF out headerº 1 x Front panel switch/LED headerº 1 x Front panel audio headerº CD in/ AUX in headersº CPUFAN/PWRFAN/SYSFAN connectorsSYSTEM BIOSº Award BIOS with 4Mb Flash ROMº Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMIº Supports ACPI revision 1.0 specificationFORM FACTORº Micro-ATX Size, 244mm*244mm
