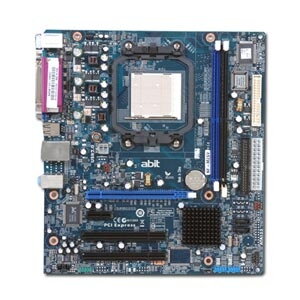

ABIT NF-M2SV AM2+/AM2 NVIDIA GeForce 6100 Micro ATX AMD Motherboard

Specifications
CPU
Socket AM2 Processor with 2000MT/s system bus
AMD® Cool 'n' Quiet Technology
Chipset
NVIDIA® GeForce®6100+405 single chip
Memory
2 X 240-pin DIMM sockets support max. memory capacity 4GB
Supports Dual channel DDR2 800/667/533 Un-buffered ECC/Non-ECC memory
Graphics
Integrated NVIDIA® GeForce®6100 Graphics
Windows® Vista Premium H/W Ready
LAN
On board 10/100 LAN
Audio
On board HD 5.1 CH Audio CODEC
Expansion Slots
1 x PCI-E X16 (PCI-E X 8 bandwidth)
1 x PCI-E X1
2 x PCI
Internal I/O
1 x Floppy Port supports up to 2.88MB
1 x Ultra DMA 133/100/66/33 IDE connector
2 x USB 2.0 headers (support 4 ports)
2 x SATA 3Gb/s connectors
1 x FP-Audio connector
Back Panel I/O
1 x PS/2 Keyboard, 1 x PS/2 Mouse
1 x D-Sub, 1 x Serial port, 1 x Parallel port
4 x USB 2.0, 1 x RJ-45 LAN connector
5.1 CH Audio connector (Front, Line-in, MIC-in, Center/Subwoofer, Surround, Rear Surround)
Serial ATA
2 x SATA 3Gb/s support SATA RAID 0/1
Form Factor
Micro ATX form factor 244 x 220mm
PCB Color: Blue
RoHS
100% lead-free process and RoHS compliant
