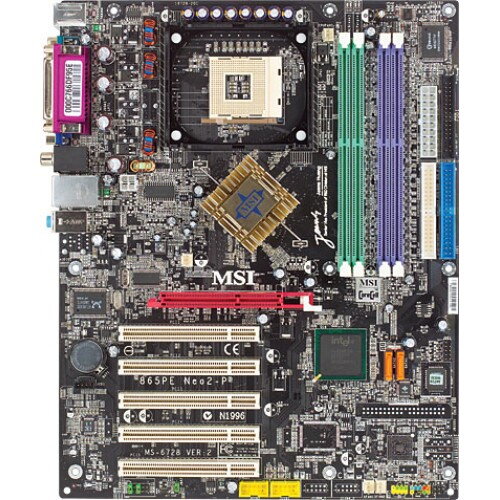

MSI MS-6728 865PE Neo2-P Platinum Edition

Specifications
CPU
• Supports Intel® P4 Northwood/Prescott/P4 Extreme Edition processors.(Socket 478)• FSB 400 (for Northwood only), 533, 800MHz.• Supports up 3.6GHz/800MHz and higher speed
Memory Speed/CPU FSB Support Matrix FSB\Memory clockDDR266DDR333DDR400800 MHzYESYES*YES533 MHzYESYESNO400 MHzYESNONO*Note: While using DDR333 with 800MHz FSB the memory will run at 320MHz.
Chipset
• Intel® 865PE Chipset - Supports FSB 800/533/*400(Northwood only)MHz. - Supports AGP 8X interface. - Supports Dual Channel DDR 400/333/266 memory interface.

• Intel® ICH5 Chipset - Hi-Speed USB (USB2.0) controller, 480Mb/sec, 8 ports. - 2 Serial ATA/150 ports. - 2 channel Ultra ATA 100 bus Master IDE controller. - PCI Master v2.3. - I/O APIC. - Supports both ACPI and legacy APM power management.

Main Memory
• Supports four unbuffered DIMM of 2.5V DDR SDRAM.• Supports up to 4GB memory size without ECC.• Supports Dual channel DDR266/333/400/433/466/500/533 MHz and up. (DDR433/466/500/533 are overclocking spec)

Slots
• One AGP slot supports 8x/4x at 0.8V (AGP 3.0) or 4x at 1.5V (3.3V is not supported).• Five 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface).

On-Board IDE
• Dual Ultra DMA 66/100 IDE controllers integrated in ICH5. - Supports PIO, Bus Master operation modes. - Can connect up to four Ultra ATA drives.
• Serial ATA/150 controller integrated in ICH5. - Up to 150MB/sec transfer speeds. - Can connect up to two Serial ATA drives.

Audio
• AC97 link controller integrated in Intel® ICH5 chipset.• 6 channels software audio codec Realtek ALC655. - Compliance with AC97 v2.3 Spec. - Meet PC2001 audio performance requirement.

LAN
• Realtek® 8110S - Integrated Fast Ethernet MAC and PHY in one chip. - Supports 10Mb/s, 100Mb/s and 1000Mb/s (1000Mb/s for 8110S only). - Compliance with PCI 2.2. - Supports ACPI Power Management.

On-Board Peripherals
On-Board Peripherals include: - 1 floppy port supports 1 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial port (COM A) - 1 parallel port supports SPP/EPP/ECP mode - 8 USB 2.0 ports (Rear x 4 / Front x 4) - 1 Line-In / Line-Out / Mic-In audio port - 1 RJ45 LAN jack - 1 rear coaxial SPDIF-Out
MSI Reminds You...• The floppy disk cable will be optional.
BIOS
• The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.• The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

Dimension
• 30.5 cm(L) x 24.5 cm(W) ATX Form Factor
Mounting
• 9 mounting holes.
