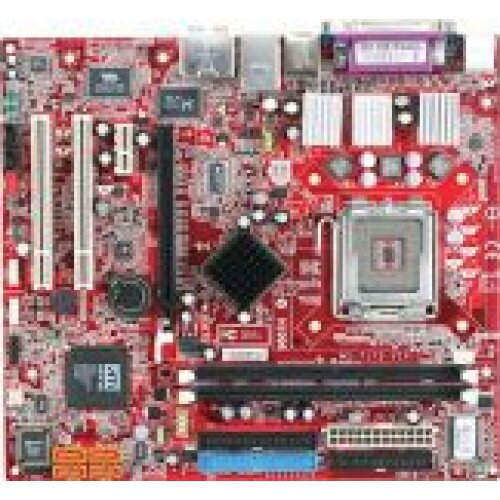

MSI RC410M-L LGA 775 ATI Radeon Xpress 200 Micro ATX

FeaturesMSI Advanced Live Update OnlineThe MSI Live Update online is designed to automatically download and update the BIOS and driver when thereâs a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.live_update_4Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.DIGI CellThis program is a kind of control center for the mainboard. DigiCell has its own tools for monitoring network connections. And it has an integrated Power On Agent utility that can start up and shut down the computer according to a schedule.Specifications

CPU ⢠Supports Intel® Pentium 4 / Celeron D processors in LGA775 package.⢠Supports up to Pentium 4 5xx, 6xx(EM64T) and Celeron D 3xx sequence processor.⢠Support Intel 04B and 04A processors.⢠Supports Intel Hyper-Threading Technology.⢠Supports Intel new technology "EIST".Please refer to CPU Support for compatible CPU; the above description is for reference only.
MSI Reminds you:1. Please use MSI Live BIOS tool to upgrade BIOS of this product.2. Because of the limitations of chipset, this MB does not support 98/ME

Chipset
⢠ATI® Radeon XPRESS 200 (RC410) Chipset- FSB 800/533MHz- Supports single channel DDR II 667/533 SDRAM- Graphic integrated
⢠ATI® SB450 Chipset- Supports dual channel native SATA controller up to 150MB/s with RAID 0 or RAID 1- Integrated Hardware Sound Blaster/Direct Sound AC97 audio- Ultra DMA 66/100/133 master mode PCI EIDE controller- ACPI amp; PC2001 enhanced power management- Supports USB2.0 up to 8 ports

Main Memory
⢠Supports single channel DDR2 533/667, using two 240-pin/1.8V DDR2 DIMMs.⢠Supports a maximum memory size up to 2GB
NOTE: Memory support by MSI certified module only. For more detailed information on verified memory modules, please refer here.
Slots ⢠One PCI Express x 16 slot. (supports PCI Express Bus specification v1.0a compliant)⢠One PCI Express x 1 slot. (supports PCI Express Bus specification v1.0a compliant)⢠Two 32-bit v2.2 Master PCI bus slots. (support 3.3v/5v PCI bus interface)

On-Board IDE / SATA
⢠An IDE controller on the ATI® SB450 chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes- Can connect up to 4 IDE devices
⢠Serial ATA/150 controller integrated by ATI® SB450- Up ot 150MB/s transfer rate- Can connect up to 4 serial ATA devices
Audio
⢠High Definition link controller integrated in SB450 chipset⢠8-channel/6-channel audio codec Realtek ALC880/ALC655- Compliance with AC97 v2.3 Spec.- Meets PC2001 audio performance requirement
Realtek ALC880 available in RC410M-FI, RC410M-F, RC410M-LRealtek ALC655 available in RC410M-LA
LAN
⢠Realtek® RTL8100C or 8110SB LAN chipset - Integrated Fast Ethernet MAC and PHY in one chip- Supports 10Mb/s, 100Mb/s and 8110S supports up to 1000Mb/s.- Compliance with PCI v2.2- Supports ACPI Power Management
Realtek 8100C available in RC410M-L, RC410M-LARealtek 8110SB available in RC410M-F, RC410M-FI

IEEE1394
⢠VIA® 6307 chipset- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)- Transfer rate is up to 400Mbps
IEEE1394 function only available in RC410M-FI
Internal I/O Connectors
- ATX 24-Pin power connector- 4-pin ATX 12V power connector- CPU / System FAN connectors- CD-In connector- Front panel connector- Front panel audio connector- 1 x Floppy disk drive connector- 4 x Serial ATA connectors- 2 x ATA133 HD connectors- 1 x IEEE 1394 connectors support additional 1 ports (Optional)- 2 x USB 2.0 connector support additional 4 ports- SPDIF-Out connector (Optional)- TV-Out connector (Optional)- Clear CMOS Jumper
MSI Reminds You...⢠The floppy disk cable will be optional.

Back Panel I/O Ports
- 1 x Parallel- 1 x PS/2 Keyboard- 1 x PS/2 Mouse- 1 x VGA port- 1 x Serial port- 1 x 6 in 1 audio jack / 1 x 3 in 1 audio jack (Optional)- 4 x USB 2.0- 1 x IEEE1394 (Optional)- 1 x RJ45 LAN Jack

BIOS
⢠The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.⢠The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.⢠Supports boot from LAN, USB Device 1.1 amp; 2.0, and SATA HDD.

Dimension
⢠24.4cm(L) x 23.0cm(W) Micro-ATX Form Factor.
Mounting
⢠6 mounting holes.
