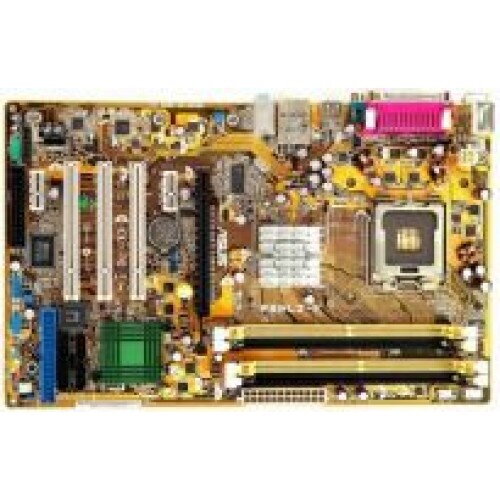

ASUS P5PL2-E

CPU
Intel Socket 775 Processors

Prescott/Smithfield/Cedermill/Presler/Conroe/CPU

Support Intel@ next generation 65nm(both Single amp; Dual Core) CPU

Support Intel@ EM64T/EIST/Hyper-Threading Technology
Chipset
Intel 945G

Intel ICH7
Front Side Bus
1066/800/533/ MHz
Memory
4 x DIMM, Max. 2 GB, DDR2 533/400/ Non-ECC,Un-buffered Memory
Expansion Slots
1 x PCIe x16

2 x PCIe x1

3 x PCI 2.2
Storage
Southbridge

1 xUltraDMA 100/66/33

4 xSATA 1 Gb/s ports
Audio
Azalia CODEC: ADI1986A 6 -Channel High Definition Audio

S/PDIF out on back I/O port

Supports Jack Sensing amp; Enumeration
LAN
Realtek RTL8111B Gigabit/ LAN
USB
8 USB 2.0 ports /USB1.1 ports
Special Features
ASUS MyLogo

ASUS CrashFree BIOS 2
Overclocking Features
Precision Tweaker

- vDIMM: 4 -step DRAM voltage control

- vCore: Adjustable CPU voltage at 0.0125V increment

SFS (Stepless Frequency Selection)

- FSB tuning from 200 MHz to 450MHz at 1MHz increment

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)

Adjustable CPU Voltage at 0.0125V increment

4-step DRAM Voltage control
Back Panel I/O Ports
1 x Parallel

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Serial port

1 x S/PDIF Out

1 x LAN(RJ45) port

4 x USB 2.0/1.1

6 -Channel Audio I/O
Internal I/O Connectors
2 x USB connectors supports additional 4 USB ports

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

1 x S/PDIF Out connector

1 x4-pin ATX 12V Power connector

24 -pin ATX Power connector

Front panel audio connector

Game/MIDI port connector

Chassis Intrusion connector

CD/AUX audio in
BIOS
4 Mb Flash ROM

DMI

AMI BIOS

PnP

WfM 2.0

SM BIOS 2.3

ACPI 2.0a

ASUS EZ Flash

ASUS MyLogo

ASUS CrashFree BIOS 2
Manageability
WOL/WOR by PMEï¼WOR by Ringï¼ ,WO_USB, WO_KB/MS WOW
O/S Compatibility
Windows Vista

Windows XP

Windows 2000
Support Disc
Drivers

ASUS PC Probe II

ASUS LiveUpdate Utility

ASUS AI Booster

Adobe Acrobat Reader

Microsoft Direct X ver 9.0C
Accessories
User's manual

x UltraDMA 133/100/66 cables

x SATA cables

I/O Shield

USB2.0 port module
Form Factor
ATX Form Factor

12 inch x 7.5 inch ( 30.5 cm x19 cm )
