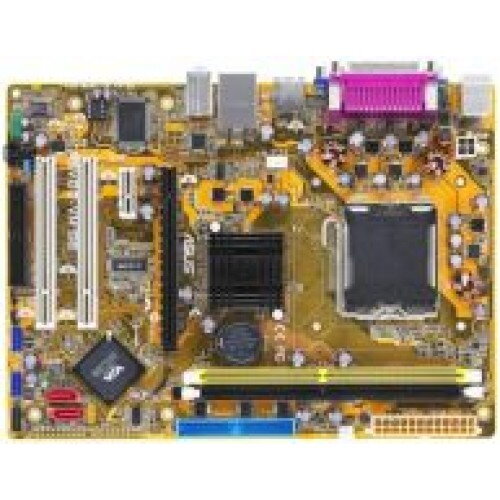

ASUS P5VD2-VM SE

CPU
LGA775 socket for Intel® Core™2 Duo/ Pentium® D / Pentium® 4 / Celeron® D processors

Support Intel EM64T/EIST/Hyper-Threading Technology
Chipset
VIA P4M900 / VIA VT8237S
Front Side Bus
1066 / 800 / 533 MHz
Memory
2 x 240-pin DIMM sockets support max. 4GB, DDR2 667/533/400 MHz, non-ECC, un-buffered memory



Note:

Due to the chipset's limitation, the system allocates a certain amount of memory for devices; hence, the actual memory size is less than the total size of physical memory installed.
Expansion Slots
1 x PCIe x16

1 x PCIe x1

2 x PCI 2.2
VGA
Integrated Graphics, up to 256MB shared memory

Support max. resolution to 1920 x 1440 (@75Hz)
Storage
VIA VT8237S South Bridge:

- 1 x UltraDMA 133/100/66/33

- 2 x Serial ATA 3Gb/s supporting RAID 0, 1, JBOD
LAN
VIA VT8237S built-in 10/100 MAC with external PHY
Audio
Realtek ALC662, 6-CH High-Definition Audio CODEC
USB
Max. 8 USB2.0 ports
Special Features
CrashFree BIOS 2

ASUS EZ Flash

ASUS Q-Fan

MyLogo
Back Panel I/O Ports
1 x Parallel

1 x VGA Port

1 x COM Port

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 xLAN (RJ-45) port

4 x USB 2.0/1.1 ports

6-Channel Audio ports
Internal I/O Connectors
2 x USB 2.0 connectors support additional 4 USB 2.0 ports

1 x CPU / Chassis fan connector

1 x Floppy disk drive connector

1 x IDE connector for two devices

1 x S/PDIF out connector

Front panel Audio connector

CD audio-in connector

Chassis intrusion connector

24-pin ATX Power connector

4-pin ATX 12V Power connector

System Panel connector
BIOS
4 Mb Flash ROM,AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0a, SM BIOS 2.3
Manageability
WOL by PME, WOR by PME, PXE
Accessories
1 x Serial ATA cable

1 x Serial ATA power cable

1 x UltraDMA 133/100/66 cable

1 x FDD cable

1 x I/O Shield

User's manual
Support Disc
Drivers

ASUS PC Probe II

ASUS LiveUpdate Utility

Adobe Acrobat Reader ver 7.0

Anti-virus software (OEM version)
Form Factor
mATX Form Factor, 9.6"x 7"(24.4cm x 17.8cm)
