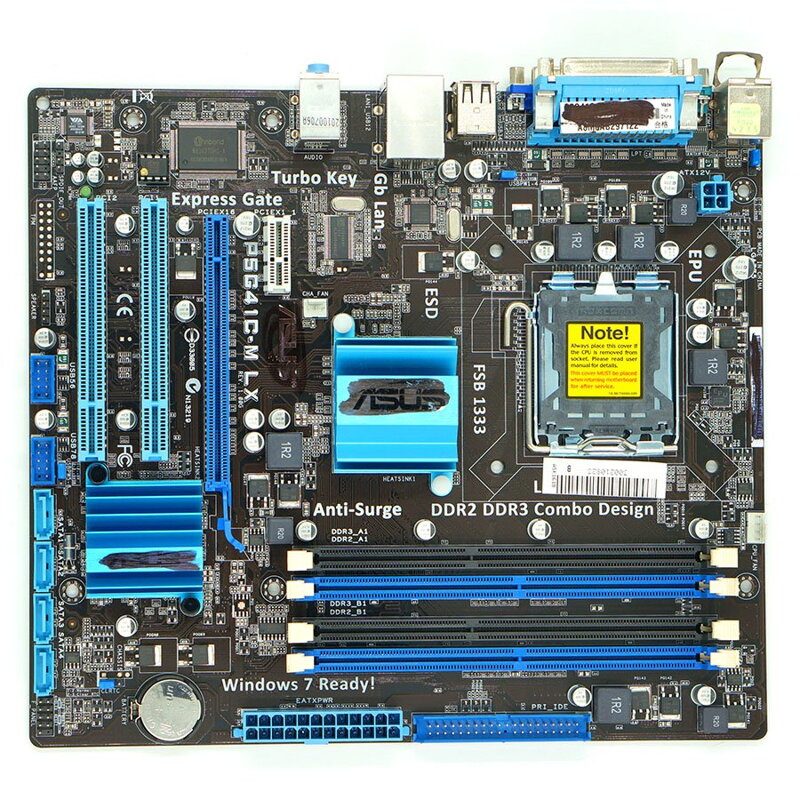

ASUS P5G41C-M LX

SPECS
GENERAL
Chipset TypeIntel G41 Express / Intel ICH7
Compatible ProcessorsPentium, Celeron, Core 2 Duo, Core 2 Extreme, Core 2 Quad, Celeron 400 sequence
Processor SocketLGA775 Socket
Max Bus Speed1333 MHz
Max Processors Qty1
ManufacturerAsus
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
2 x DIMM 240-pin
2 x DIMM 240-pin
1 x PCIe x16
1 x PCIe x1
2 x PCI
Storage InterfacesIntel ICH7: ATA-100 -connectors: 1 x 40pin IDC - 2 devices
Intel ICH7: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices
Internal Interfaces4 x USB 2.0
Power Connectors4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 4
TypeLAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, VGA, audio line-out, audio line-out (center/subwoofer)/microphone, audio line-out (rear)/line-in, parallel, serial
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MISCELLANEOUS
Microsoft CertificationsCompatible with Windows 7
Product Typemotherboard
Compatible with Windows 7"Compatible with Windows 7" software and devices carry Microsoft's assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
AUDIO
Audio CodecVIA VT1708S
Compliant StandardsHigh Definition Audio
VIDEO
Video Outputgraphics adapter
Graphics ProcessorIntel GMA X4500
GRAPHICS
Graphics ControllerIntel GMA X4500
AUDIO OUTPUT
Sound Output Mode5.1 channel surround
Compliant StandardsHigh Definition Audio
Typesound card
Audio CodecVIA VT1708S
AudioHigh Definition Audio (8-channel)
RAM
Max Supported Size8 GB
Featuresdual channel memory architecture
LAN
Network InterfacesGigabit Ethernet
SUPPORTED RAM
Bus Clock1066 MHz, 800 MHz, 667 MHz
FeaturesDual channel memory architecture
Registered or BufferedUnbuffered
SpeedPC3-8500, PC3-6400, PC2-6400, PC2-5300
TechnologyDDR2, DDR3
Max Size8 GB
Supported RAM Integrity CheckNon-ECC
HEADER
BrandASUS
Product LineASUS
ModelP5G41C-M LX
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form Factormicro ATX
Processor SocketLGA775 Socket
Compatible ProcessorsCeleron, Celeron 400 sequence, Core 2 Duo, Core 2 Extreme, Core 2 Quad, Pentium
Data Bus Speed1333 MHz
Chipset TypeIntel G41 Express
I/O ControllerIntel ICH7
Supported RAM TechnologyDDR2 SDRAM, DDR3 SDRAM
Supported RAM Speed1066 MHz, 667 MHz, 800 MHz
Supported RAM StandardPC2-5300, PC2-6400, PC3-6400, PC3-8500
Supported RAM Integrity Checknon-ECC
Supported RAM (Registered or Buffered)unbuffered
RAM Slots4 DIMM slots
Power Connectors24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS TypeAMI
BIOS FeaturesACPI 2.0 support, ASUS EZ Flash 2, ASUS MyLogo2, DMI 2.0 support, SMBIOS 2.5 support, WfM 2.0 support
Hardware FeaturesASUS AI NET2, ASUS Anti-Surge Protection, ASUS EPU-L Engine, ASUS Express Gate, ASUS Q-Fan, ASUS Stepless Frequency Selection (SFS), ASUS Turbo Key, C.P.R. (CPU Parameter Recall), CrashFree BIOS 3, audio jack detect technology
INTERFACES
StorageATA-100, Serial ATA-300
Storage Ports4 x SATA-300, 1 x ATA-100
USB / FireWire Ports Configuration (Active)4 x USB 2.0
CABLE DETAILS
TypeIDE cable, Serial ATA cable
Included Qty1, 2
EXPANSION SLOTS
Total Qty1, 2
TypeCPU, DIMM 240-pin, PCI, PCIe x1, PCIe x16
DIMENSIONS & WEIGHT
Width9.6 in
Depth8.5 in
SOFTWARE
Software IncludedASUS Live Update, ASUS PC Probe 2, drivers & utilities
SERVICE & SUPPORT
Type3 years warranty
STORAGE INTERFACES
ChipIntel ICH7
InterfaceATA-100, Serial ATA-300
Connector(s)1 x 40pin IDC, 4 x 7pin Serial ATA
Supported Devices Qty2, 4
SERVICE & SUPPORT DETAILS
Typelimited warranty
Full Contract Period3 years
INTERNAL INTERFACES
TypeUSB 2.0
Qty4
FEATURES
BIOS TypeAMI
BIOS FeaturesDMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ACPI 2.0 support, ASUS EZ Flash 2, SMBIOS 2.5 support
Hardware FeaturesASUS Q-Fan, C.P.R. (CPU Parameter Recall), ASUS Anti-Surge Protection, ASUS EPU-L Engine, ASUS Turbo Key, CrashFree BIOS 3, ASUS AI NET2, ASUS Stepless Frequency Selection (SFS), audio jack detect technology, ASUS Express GateGENERAL
ManufacturerAsus
