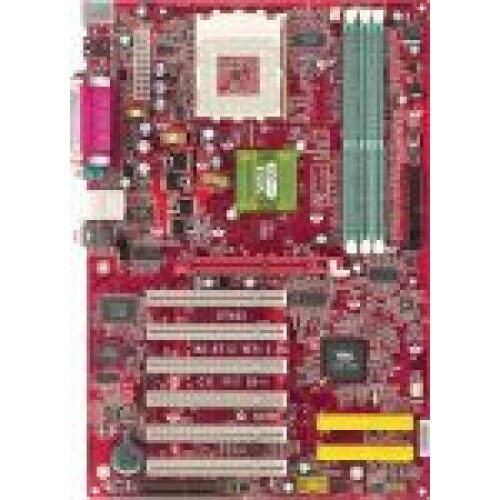

MSI KT4AV-L

CPU
⢠Supports Socket A for AMD® Athlon⢠XP/Athlonâ¢/Duronâ¢/Sempron⢠processor

⢠Supports up to Athlon⢠XP 3000+ processor



Chipset
⢠VIA® KT400A Chipset

- FSB @200/266/333 MHz

- Supports DDR200/266/333/400 memory

- AGP 8X and PCI advanced high performance memory controller.



⢠VIA® VT8235 Chipset

- Integrated Direct Sound AC'97 audio

- Dual channel Ultra DMA 33/66/100/133 master mode EIDE controller

- ACPI amp; PC2001 compliant enhanced power management

- Integrated USB 2.0 controller



FSB
⢠100/133/166(200/266/333)MHz clocks are supported.



Main Memory



⢠Supports six memory banks using three 184-pin DDR DRAMs.

⢠Supports up to 3GB memory size.

⢠Supports DDR400/DDR333/DDR266/DDR200 DRAM

⢠No support ECC Function.



Slots



⢠One AGP (Accelerated Graphics Port) 1.5V 8x/4x slot

⢠Six 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

⢠One CNR (Communication Network Riser) slot



On-Board IDE



⢠An IDE controller on the VT8235 chipset provides IDE HDD/CD-ROM with PIO,

Bus Master and Ultra DMA133/100/66/33 operation modes

⢠Can connect up to four IDE devices



Audio



⢠RealTek ALC650 6-channel audio



LAN



⢠VIA VT6103 LAN controller



On-Board Peripherals
On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 2 serial ports (COM A + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

- Vertical audio ports

- 1 SPDIF output (2 x 6-pin) with housing (Optional)

- 6 USB ports (Rear x 4/ Front x 2)



BIOS
⢠The mainboard BIOS provides "Plug amp; Play" BIOS which detects the peripheral devices and

expansion cards of the board automatically.

⢠The mainboard provides a Desktop Management Interface(DMI) function which records your

mainboard specifications.



Dimension
⢠30.5 cm(L) x 21 cm(W) ATX Form Factor
Mounting
⢠6 mounting holes.
