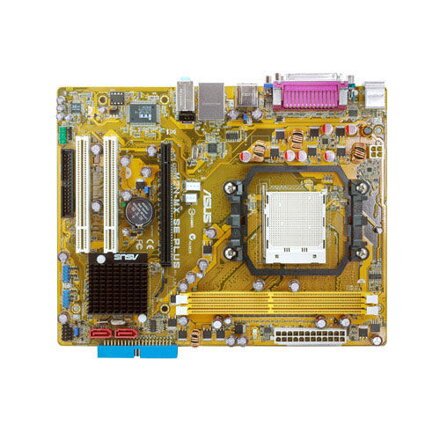

ASUS M2N-MX SE Plus

CPU
AMD Socket AM2+ / AM2 Athlon64/Athlon64 FX/Athlon64 X2/Sempron Processors
AMD Cool 'n' Quiet⢠Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!⢠Ready
( AM2+ socket are backward compatible with AM2 socket.but AM2 processors work at AM2 platform,and AM2+ processors works at AM2+ platform.)
Chipset
NVIDIA GeForce 6100/nForce 430
System Bus
2000/1600
Memory
2 x240-pin DIMM, Max. 4 GB, DDR2 1066/800/667/533 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe x16
2 x PCI
Storage
NVIDIA MCP61P
1 xUltraDMA 133/100/66/33
2 xSATA 3 Gb/s ports Support RAID 0,1 NVIDIA MediaShield⢠RAID 0 and 1span cross Serial ATA drives
LAN
PHY 100/10 LAN
Audio
ALC662 High Definition Audio 6 -Channel CODEC
Support Jack-Detect, Multi-streaming and S/PDIF out interface
USB
8 USB 2.0 ports
Special Features
ASUS MyLogo
ASUS EZ Flash
ASUS CrashFree BIOS 2
ASUS Q-Fan
Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
5.1 -Channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB 2.0 ports
1 x CPU Fan connector
1 x Chassis Fan connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24 Power connector
Front panel audio connector
CD/AUX audio in
System Panel
BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.5
ACPI 2.0
Manageability
WfM 2.0,DMI 2.0,WOL by PME, WOR, PXE

ASUS LiveUpdate Utility
AMD Cool 'n' Quiet Utility
Form Factor
uATX Form Factor
9.6 inch x 7.6 inch ( 24.5 cm x 19.4 cm )

+I/O shield krytka
