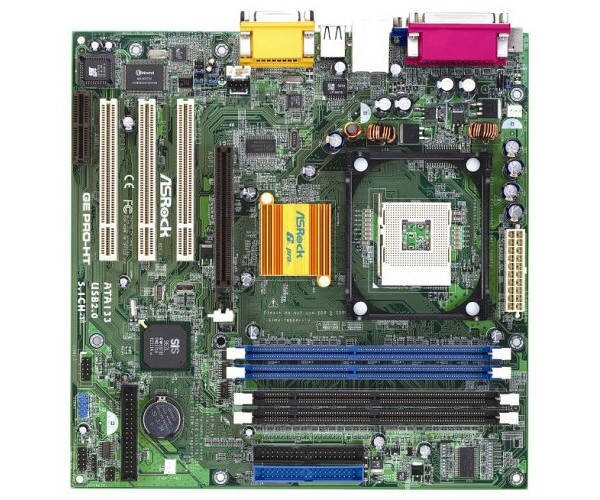

ASRock GE PRO-HT (trieda B)

Nefunkčná integrovaná zvuková karta.

Socket 478 for Intel® P4 processor
SiS® 651 chipset
FSB 533MHz
support Hyper-Threading technology
DDR 333/266/200 + PC133/100
Integrated Real 256 3D Graphic.
1 slot for AGP 4X/2X universal.
Supports both DDR and SDRAM memory modules to provide you best flexibility and save your cost.
ASROCK I/O - default 4 ready-to-use USB 2.0 ports on rear panel, default Game/MIDI port.
ATA 133 supported.
5.1 Channel audio.

CPU
- Socket 478, Intel® Pentium® 4
- FSB : 533/400MHz
Chipset
- SiS® 651(HT)Supports Hyper-Threading Technology
Memory
- Max. capacity of system memory: 2GB DDR or 2GB SDRAM
- DDR x 2, DDR333/266 non-ECC, un-buffered memory
- SDRAM x 2, PC133/100 non-ECC, un-buffered memory
BIOS
- 2Mb AMI BIOS with ACPI, SM BIOS 2.3.0, PnP
Graphics
- Chip Integrated Real 256 3D Graphic
- Memory Max. 64MB
Audio
- Chip AC97 CODEC
- Channel 5.1 CH
LAN
- 802.3u, 10/100 Ethernet LAN, WOL supported
- Supports PXE
Slots
- AGP 1, AGP 4X/2X universal
- PCI 3 slots, PCI 2.2
- AMR 1 shared w/PCI 3
Connector
- IDE 2 x ATA 133/100/66/33
- Floppy 1 connector
- 1 x SIR
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- CD/AUX/ audio in (on audio model only)
- Front panel audio connector (on audio model only)
Rear Panel I/O
ASROCK I/O
- Keyboard PS2 x1
- Mouse PS2 x1
- USB2.0 4 ports default on rear panel + 2 ports upgrade via header
- Serial 1 COM Port Bracket
- Parallel 1
- Game/MIDI 1
- LAN 1 x RJ45
- Audio I/O Line In/Line Out/Mic.
- VGA x 1
Unique Feature
- n/a
Support CD
- Drivers
- Bundle CD includes: Anti Virus Software, ASRock PC DIY Live Demo, Audio Player, etc..
Accessories
- Quick Installation Guide
- Support CD
- Floppy/ATA 133/100 Cables
- 1x COM Port Bracket
Form Factor
- Micro ATX
OS
- Microsoft® Windows® 98SE/ME/2000/XP compliant
