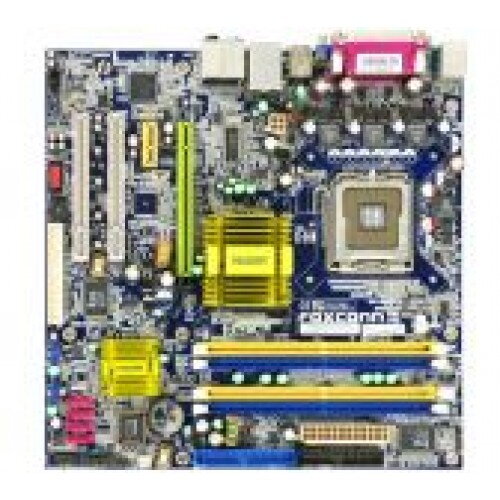

Foxconn 945G7MA-8KS2H LGA 775

Processor:
Support Intel® Smithfield, Pentium® 4, Celeron D, Socket T (LGA775) Prescott processors
Chipset:
Intel® 945G + Intel® ICH7
Front Side Bus:
1066 / 800 MHz FSB
Memory:
Dual channel DDR2 533/667 x4 DIMMs
VGA on Die:
Intel® Graphics Media Accelerator 950
Expansion Slots:
1 x PCIe x16, 1 x PCIe x1, 2 x PCI
IDE:
1 x ATA 133, 1 x ATA 100
Serial ATA(SATA)/RAID:
4 x SATA II
Audio:
Realtek ALC 880 header for Intel Azalia
LAN:
BCM5788KFB (PCI GbE)
IEEE1394:
N/A
Back Panel I/O Ports:
1 set 7.1 channel Audio jack (6 jacks)

1 x PS/2 keyboard

1 x PS/2 mouse

1 x parallel

1 x COM

4 x USB 2.0

1 x RJ45

1 x VGA
Internal I/O Connectors:
2 x USB 2.0 headers support 4 ports

1 x S/PDIF header

1 x IrDA header

1 x CD IN header

1 x AUX IN header (reserve)

1 x TPM

4 x SATAII connectors

1 x front audio header

1 x buzzer

1 x COM2 (reserve)
BIOS Features:
FWH 4MB, ACPI 1.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0, WfM 2.0
Support CD:
Chipset Drivers, DirectX, RAID Driver, USB 2.0 Driver, VGA Driver, Audio Driver, Network Driver, Adobe Reader, Super Utility, Norton Internet Security
Standards/Manageability:
PCI 2.3, USB2.0; WfM 2.0, DMI 2.0
Special Features:
USB, keyboard amp; mouse; STR (Suspend-to-Ram), STD (Suspend-to-Disk), SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperLevel, SuperStep, SuperLogo, SuperUpdate by CD Driver, Ratio Free
Form Factor:
Micro ATX (9.6” x 9.6”)
