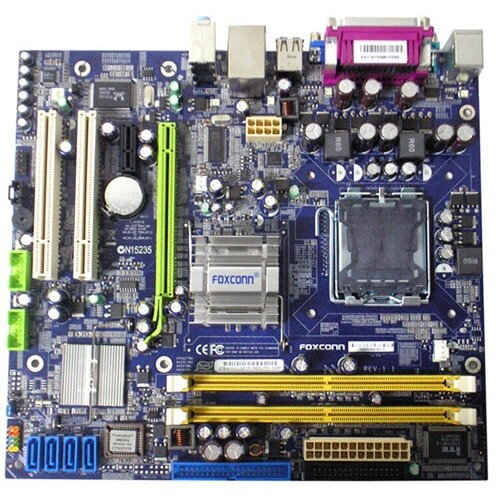

Foxconn 945GZ7MC-KS2H

- Intel® Core™2 Duo(supports E4xxx), Pentium® D, Pentium® 4 and Celeron® D processors, Socket T (LGA775)
- 533/800MHz (FSB)
- Dual channel DDR2 400/533 x 2 DIMMs, Max 2GB
- PCIe x16, 1 x PCIex1, 2 x PCI
- ATA x 1, Serial ATA II x 4
- 5.1 channel Audio, Realtek (HDA)
- GbE LAN Realtek (PCI)
- 8 USB 2.0 ports

Processor Intel® Core™2 Duo(supports E4xxx), Pentium® D, Pentium® 4 and Celeron® D processors, Socket T (LGA775)
Chipset Intel® 945GZ + ICH7
Front Side Bus 533/800MHz FSB
Memory Dual channel DDR2 400/533 x 2 DIMMs, Max 2GB
VGA on Die Integrated
Expansion Slots 1 x PCIe x16(run x4 mode), 1 x PCIe x1, 2 x PCI
IDE ATA 100 x 1
Serial ATA(SATA)/RAID SATAII x 4
Audio 5.1 channel, Realtek ALC 861 (HDA)
LAN GbE LAN, Realtek RTL8110SC PCI
IEEE1394 N/A
Back Panel I/O Ports 1 x PS/2 keyboard
1 x PS/2 mouse
1 x parallel
1 x RJ45
4 x USB 2.0
1 x Serial
1 set 5.1 channel Audio jacks (3 jacks)
1 x VGA port
Internal I/O Connectors 2 x USB 2.0 headers, support 4 ports
1 x Speaker (reserve)
1 x IrDA header
1 x Intruder
1 x CD IN header
1 x Intel Azalia Header
1 x Front panel header
1 x S/PDIF out header(reserve)
1 x buzzer
BIOS Features FWH 4MB, ACPI 2.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3
Support CD Drivers, DirectX, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability PCI 2.3, USB2.0, DMI 2.0
Special Features Dual Core, SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperLevel, SuperStep, SuperLogo, SuperUpdate
Form Factor Micro ATX (9.6" x 8.8")
