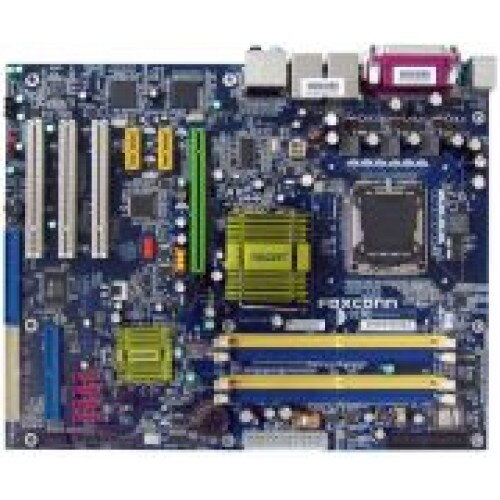

Foxconn 945P7AA-8EKRS2 LGA 775

Processor:
Support Intel® Smithfield, Pentium® 4, Celeron D, Socket T (LGA775) Prescott processors
Chipset:
Intel® 945P + Intel® ICH7R
Front Side Bus:
1066 / 800 MHz FSB
Memory:
Dual channel DDR2 533/667 x4 DIMMs
VGA on Die:
N/A
Expansion Slots:
1 x PCIe x16, 2 x PCIe x1, 3 x PCI
IDE:
Support 2x ATA 133 with RAID 0, 1, 0+1; 1x ATA 100
Serial ATA(SATA)/RAID:
Support 4x Serial ATA II with RAID 0, 1, 5, 10
Audio:
Realtek ALC 880 header for Intel Azalia
LAN:
Broadcom BCM5789KFB (PCIe GbE) and BCM5788KFB (PCI GbE)
IEEE1394:
TI TSB43AB22APDT (1394a, 1 rear port and 1 header)
Back Panel I/O Ports:
1 x IEEE 1394a

1 set 7.1 channel Audio jack (6 jacks)

1 x PS/2 keyboard

1 x PS/2 mouse

1 x parallel

1 x COM

4 x USB 2.0

1 x RJ45

1 x coax S/PDIF
Internal I/O Connectors:
2 x USB 2.0 headers support 4 ports

1 x S/PDIF header

1 x IEEE 1394a header

1 x IrDA header

1 x CD IN header

1 x AUX IN header

1 x COM2 header

1 x speaker header

1 x buzzer

1 x TPM

1 x front audio header
BIOS Features:
FWH 4MB, ACPI 1.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3, USB 2.0, WfM 2.0
Support CD:
Chipset Drivers, DirectX, RAID Driver, USB 2.0 Driver, VGA Driver, Audio Driver, Network Driver, Adobe Reader, Super Utility, Norton Internet Security
Standards/Manageability:
PCI 2.3, USB2.0; WfM 2.0, DMI 2.0
Special Features:
USB, keyboard amp; mouse; STR (Suspend-to-Ram), STD (Suspend-to-Disk), SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperLevel, SuperStep, SuperLogo, SuperUpdate by CD Driver
Form Factor:
ATX (12” x 9.6”)
