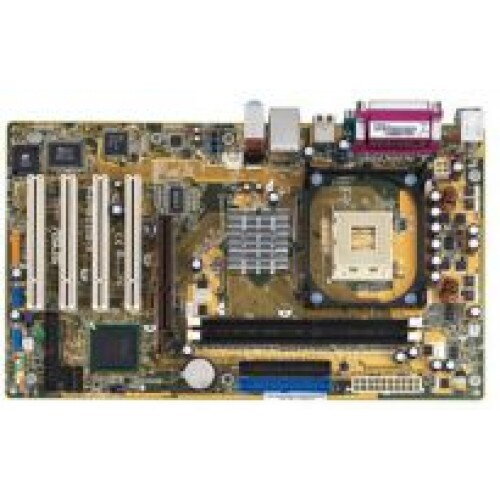

ASUS P4P800S-X

CPU
- Socket 478 for Intel Pentium 4/ Celeron up to 3.6GHz+

- Intel Hyper-Threading Technology ready

- New power design supports Intel next generation Prescott CPU!
Chipset
Intel 848P MCH

Intel ICH5
Front Side Bus
800/533/400MHz
Memory
2 x 184-pin DIMM Sockets support max. 2GB PC3200/PC2700/PC2100 non-ECC DDR SDRAM memory
Expansion Slots
1 x AGP 8X (0.8V, 1.5V only)

4 x PCI
Audio
ADI AD1888 SoundMAX 6-channel audio CODEC

support S/PDIF out interface
LAN
Realtek RTL8101L 10/100 Mbps LAN PCI controller
USB
Integrated 8 USB2.0 ports
Overclocking Features
- ASUS JumperFree

- CPU, Memory, and AGP voltage adjustable

- SFS (Stepless Frequency Selection) from 100MHz up to 266MHz at 1MHz increment

- Adjustable FSB/DDR ratio. Fixed AGP/PCI frequencies.

- ASUS C.P.R. (CPU Parameter Recall)
Special Features
Support S/PDIF out Interface

ASUS C.P.R. (CPU Parameter Recall)

ASUS EZ Flash

ASUS MyLogo

ASUS CrashFree BIOS 2
Back Panel I/O Ports
1 x Parallel

1 x Serial

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Audio I/O

1 x SPDIF out

1 x RJ45

4 x USB 2.0
Internal I/O Connectors
- 2 x USB 2.0 connector support additional 4 USB 2.0 ports

- CPU / Chassis FAN connectors

- Chassis Intrusion

- 20-pin ATX Power connector

- 4-pin ATX 12V Power connector

- CD / AUX audio in

- Game/MIDI port connector

- 20 Pin Panel connector

- Front Panel Audio connector
BIOS
3Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI, ASUS EZ Flash, CrashFree BIOS , ASUS MyLogo
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME
Support Disc
- Drivers

- ASUS PC Probe

- ASUS LiveUpdate Utility

- Trend Micro PC-cillin 2002 anti-virus software (OEM version)
Accessories
User's manual

1 x UltraDMA cable

1 x FDD cable

2 x Serial ATA cable

I/O shield
Form Factor
ATX Form Factor 12"x 7.0" (30.5cm x 17cm)
