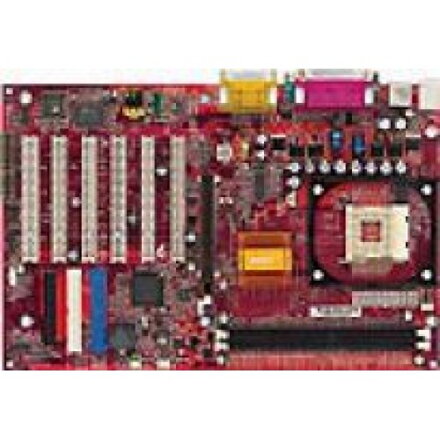

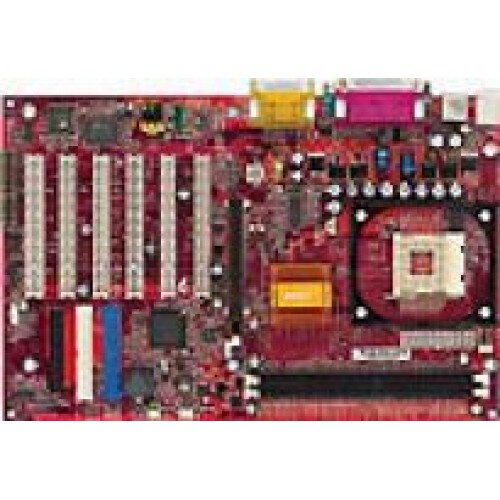

MSI 845 Ultra-C

CPU
⢠Supports Socket 478 Intel® Pentium® 4 processor

⢠Supports 1.3 ~ 2.6GHz and up.
Chipset
⢠Intel® 845 (593 FC-BGA) Chipset

- Support 100MHz FSB

- Support 400MHz Intel NetBurst micro-architecture bus

- AGP 4x slot (1.5V only)



⢠Intel® ICH2 (360 EBGA) Chipset

- AC'97 Controller Integrated

- 2 full IDE channels, up to ATA 100

- Low pin count interface for SIO



FSB
â¢Support 100MHz FSB.

⢠Support 400MHz Intel NetBurst micro-architecture bus.



Main Memory



⢠Support two 184-pin DDR DIMM slots

⢠Supports up to 2GB PC2100/PC1600 DDR DRAMs.

⢠NO support ECC Function



Slots



- One AGP (Accelerated Graphics Port) 4x slot (1.5V only)

- Six PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

- One CNR (Communication Network Riser) slot



Note: If plugging in 3.3v AGP card system won't be powered on.



On-Board IDE



â¢An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with PIO, Bus Master

and Ultra DMA66/100 operation modes.

⢠Can connect up to four IDE devices.



Audio



⢠ICH2 chip integrated

- AC'97 codec supports 2 channel Audio.



On-Board Peripherals
⢠On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.

- 2 serial ports (COM A + COM B)

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (Rear x 2/ Front x 2)

- 1 audio/game port



BIOS
⢠The mainboard BIOS provides "Plug amp; Play" BIOS which detects the pe-ripheral devices

and expansion cards of the board automatically.

⢠The mainboard provides a Desktop Management Interface (DMI) function which records

your mainboard specifications.



Dimension
⢠30.5 cm(L) x 20.0 cm(W) ATX Form Factor
Mounting
⢠6 mounting holes.
