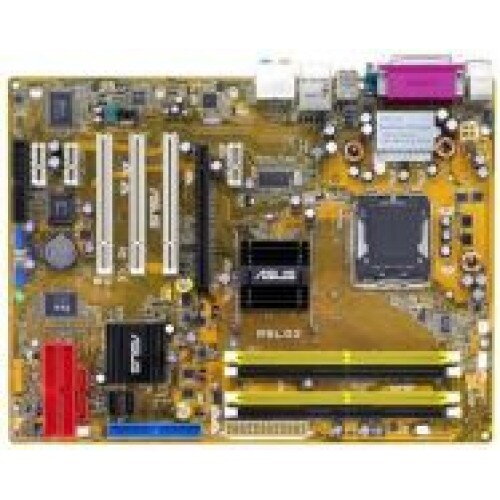

ASUS P5LD2 REV. 1.02

Specifications
CPU
LGA775 socket for Intel® Core™2 Extreme / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron® D Processors

Intel EM64T / EIST / Hyper-Threading Technology

New power design supports Intel next generation 04B/04A amp; 05B/05A CPU



*Only PCB R2.0(or higher) support Intel® Core™2 processor
Chipset
Intel 945P

Intel ICH7R
Front Side Bus
1066/800/533 MHz
Memory
4 x DIMM, max. 4GB, DDR2 667/533/400, Non-ECC, un-buffered memory

Dual Channel Architecture

* Due to general PC architecture, a small amount of memory is reserved for system usage and thus the actual memory size is less than the stated amount.
Expansion Slots
1 xPCI-E x16

3 xPCI-E x1

3 xPCI
Storage/RAID
Intel ICH7R Southbridge:

- 1 x UltraDMA 100/66/33

- 4 x Serial ATA (3Gb/s)

- RAID 0, RAID 1, RAID 5, RAID 10 and Intel Matrix Storage technology.

ITE 8211F controller:

- 2 x UltraDMA 133 support four hard drives
Audio
Realtek ALC882 8-ch High-Definition Audio CODEC

Jack Sensing and Enumeration

Universal Audio Jack

S/PDIF out interface
LAN
Marvell 88E8053 PCI-E Gb LAN controller
USB
8 USB2.0 ports
ASUS Unique Features
AI Net2

AI Quiet

AI NOS(Non-delay Overclocking System)
Overclocking Features
ASUS HyperPath3

ASUS PEG Link

ASUS CPU Lock Free



Precision Tweaker:

- vDIMM: 8-step DRAM voltage control

- vCore: Adjustable CPU voltage at 0.0125 V increment

- SFS (Stepless Frequency Selection): allowing FSB tuning from 100MHz up to 450MHz at 1MHz increment

- PCIe x16 Frequency: allowing PCIe x16 frequency from 90MHz up to 150MHz at 1MHz increment



AI Overclocking

Adjustable FSB/DDR ratio. Fixed PCI/PCIe frequencies.

ASUS AI Booster utility

ASUS C.P.R.(CPU Parameter Recall)
Other ASUS Special Features
ASUS Q-Fan
Back Panel I/O Ports
1 x Parallel

1 x Serial

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Audio I/O

1 x RJ45

1 x S/PDIF Out (Coaxial+Optical)

4 x USB
Internal I/O Connectors
2 x USB connector supports additional 4 USB ports

CPU / Chassisx2 / Power FAN connectors

24-pin ATX Power connector

4-pin ATX 12V Power connector

IDE LED connector, power LED connector

Chassis Intrusion

CD audio in

GAME/MIDI connector

Front panel audio connector
BIOS
4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, ASUS CrashFree BIOS 2, ASUS MyLogo
Manageability
WOL by PME,WOR by PME, Chassis Intrusion
Support Disc
Drivers

ASUS PC Probe II

AI Booster

Anti-Virus Software

ASUS LiveUpdate
Accessories
User's manual

1 x UltraDMA 133/100/66 cable

1 x IDE cable

1 x FDD cable

I/O shield

1 x SATA Power cables for 2 SATA Devices

2 x SATA cables
Form Factor
ATX 12"x 9" (30.5 cm x 23 cm)
