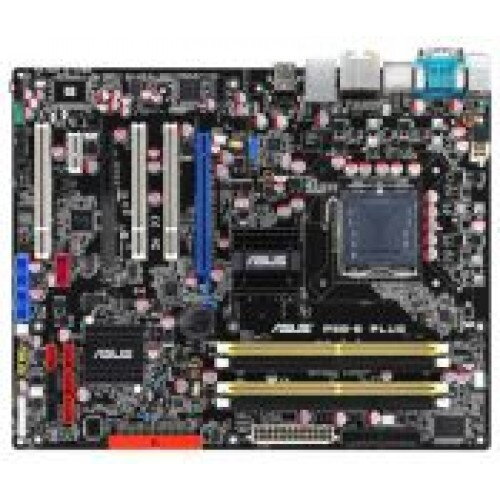

ASUS P5B-E Plus

- Support Intel® next generation 45nm Multi-core CPU

- Intel LGA775 Platform

- Intel® Quad-core CPU Ready

- Intel® Core™2 Extreme / Core™2 Duo Ready

- Intel® P965/ ICH8R

- Dual-channel DDR2 800/667/533

- Fanless Design - Stack Cool 2

- PCI-E Gb LAN/ 8-ch HD Audio

- AI NOS™ / AI Gear / AI Nap

- SATA on the Go/ 1394/ Noise Filter
CPU
Intel Socket 775 Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4/Celeron Processors

Compatible with Intel® 05B/05A/06 processors

Support Intel® next generation 45nm CPU

Intel® Hyper-Threading Technology ready

* Intel® Quad-core CPU Ready

* * Please update the latest BIOS to support Intel 45nm CPU
Chipset
Intel P965

ICH8R

Intel Fast Memory Access Technology
Front Side Bus
1066/800/533/ MHz
Memory
4 x DIMM, Max. 8 GB, DDR2 800/667/533/ Non-ECC,Un-buffered Memory

Dual Channel memory architecture

* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
Expansion Slots
1 x PCIe x16

1 x PCIe x4

1 x PCIe x1

3 x PCI 2.2
Storage
Southbridge

6 xSATA 3 Gb/s ports Support RAID 0,1,5,10,

JMicron® JMB363 PATA and SATA controller

1 xUltraDMA 133/100/66/ for up to 2 PATA devices

2 xSATA (1 x internal, 1 x external)

Support RAID 0,1,JBOD
LAN
Marvell® PCI-E Gigabit/ LAN controller featuring AI NET 2
Audio
ADI® AD1988A 8 -Channel High Definition Audio CODEC

Coaxial / Optical S/PDIF out ports

ASUS Noise Filter

Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
IEEE 1394
TI® 1394a controller supports 2 x 1394a ports (one at mid-board; one at back panel)
USB
10 USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)
ASUS Unique Features
ASUS Quiet Thermal Solution

- ASUS AI Gear

- ASUS AI Nap

- ASUS Fanless Design: Stack Cool

- ASUS Q-Fan

ASUS Crystal Sound

- ASUS Noise Filter

ASUS EZ DIY

- ASUS Q-Connector

- ASUS O.C. Profile

- ASUS CrashFree BIOS

- ASUS EZ Flash 2

- ASUS Music Alarm

- ASUS Power LED
Special Features
Multi-language BIOS

ASUS MyLogo 2
Overclocking Features
Intelligent overclocking tools

- ASUS PEG Link

- ASUS AI Booster Utility

- ASUS AI NOS (Non-delay Overclocking System)

Precision Tweaker

- vDIMM: 13 -step DRAM voltage control

- vCore: Adjustable CPU voltage at 0.0125V increment

- vChipset 4-step voltage control

SFS (Stepless Frequency Selection)

- FSB tuning from 100MHz up to 650MHz at 1MHz increment

- Memory tuning from 533MHz1066MHz up to 1066MHz

- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x Serial port

1 x External SATA

1 x S/PDIF Out

1 x IEEE 1394a

1 x LAN(RJ45) port

4 x USB 2.0/1.1

8 -Channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports

1 x Floppy disk drive connector

1 x IDE connector

1 x SATA connectors

1 x IEEE 1394a connector

1 x CPU Fan connector

3 x Chassis Fan connector

1 x Power Fan connector

1 x S/PDIF Out connector

2 x4-pin ATX 12V Power connector

24 -pin ATX Power connector

Front panel audio connector

Chassis Intrusion connector

CD/AUX audio in

System Panel Connector
BIOS
8 Mb Flash ROM

DMI 2.0

AMI BIOS

PnP

WfM 2.0

SM BIOS 2.3

ACPI 2.0a

Multi-language BIOS

ASUS EZ Flash 2

ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE,
Accessories
User's manual

x UltraDMA 133/100/66 cables

x Floppy disk drive cables

x SATA cables

SATA power cables

I/O Shield

USB2.0 port module

3 in 1 Q-connector

IEEE 1394 port module
Support Disc
Drivers

ASUS PC Probe II

ASUS AI Suite

Anti-virus software (OEM version)

ASUS Update
Form Factor
ATX Form Factor

12inchx9.6inch ( 30.5cm x24.4cm )
