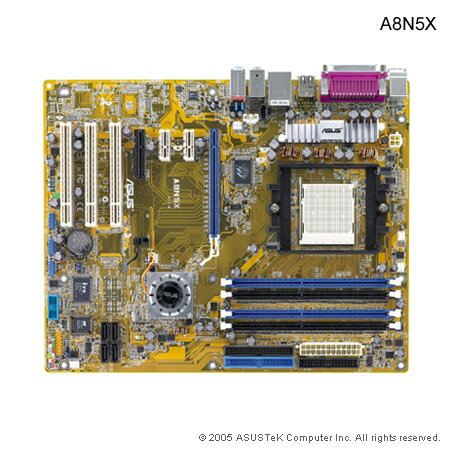

ASUS A8N5X R1:00

Supported CPU
CPU Socket Type
939
CPU Type
Athlon X2 / Athlon 64 FX / Athlon 64
FSB
1000 MHz

Chipsets
Chipset
NVIDIA nForce4

Memory
Number of Memory Slots
4×184pin
Memory Standard
DDR 400
Maximum Memory Supported
4GB
Channel Supported
Dual Channel

Expansion Slots
PCI Express x16
1 x PCI Express x16
PCI Express x4
1 x PCI Express x4
PCI Express x1
2 x PCI Express x1
PCI Slots
3 x PCI Slots

Storage Devices
PATA
2 x ATA100 4 Dev. Max
PATA RAID
NV RAID 0/1/0+1 JBOD
SATA 1.5 Gb/s
4 x SATA 1.5 Gb/s
SATA RAID
NV RAID 0/1/0+1 JBOD

Onboard Video
Onboard Video Chipset
None

Onboard Audio
Audio Chipset
Realtek ALC850
Audio Channels
8 Channels

Onboard LAN
Max LAN Speed
10/100/1000Mbps

Rear Panel Ports
PS/2
2
LPT
1
USB 1.1/2.0
4 x USB 2.0
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports

Internal I/O Connectors
Onboard USB
6 x USB 2.0

Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
