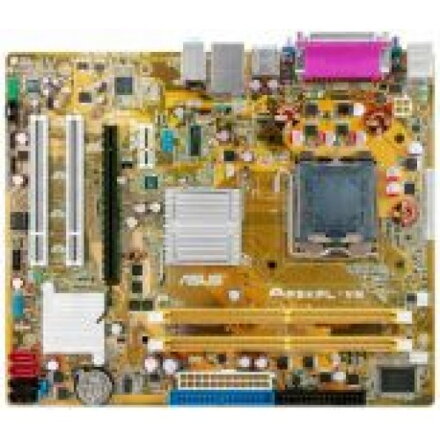

ASUS P5KPL-VM

General
ManufacturerWhat is it?
ASUS
Form factorWhat is it?
microATX
CPU
Processor manufacturerWhat is it?
Intel
SocketWhat is it?
LGA775
Socket countWhat is it?
1
Presence of build-in CPUWhat is it?
no
Build-in CPU nameWhat is it?
-
FSB maximal frequencyWhat is it?
1333
FSB minimal frequencyWhat is it?
800
Hyper-Threading supportWhat is it?
yes
Multicore processor supportWhat is it?
yes
CPU Support ListWhat is it?
Intel Celeron/Core2 Duo/Core2 Extreme/Core2 Quad/Pentium D/Pentium 4
Chipset
Chipset manufacturerWhat is it?
Intel
Chipset modelWhat is it?
Intel G31
Intel vPro supportWhat is it?
no
BIOS/EFI
BIOS manufacturerWhat is it?
AMI
BIOS recovery possibilityWhat is it?
yes
EFI (UEFI) supportWhat is it?
no
RAM
RAM slot countWhat is it?
2
RAM typeWhat is it?
DDR2 DIMM
RAM maximal frequency, MHzWhat is it?
800
RAM minimal frequency, MHzWhat is it?
667
RAM Dual-channel mode supportWhat is it?
yes
RAM Triplel-channel mode supportWhat is it?
no
RAM Quad-channel mode supportWhat is it?
no
RAM max volume, GbWhat is it?
4
ECC supportWhat is it?
no
ECC max volume, GbWhat is it?
0
Registered (buffered) memory supportWhat is it?
no
PCI/Graphic card
AGP supportWhat is it?
no
PCI-E x16 countWhat is it?
1
SLI/Crossfire supportWhat is it?
no
PCI Express 2.0 supportWhat is it?
no
PCI Express 3.0 supportWhat is it?
no
Dual-channel PCI Express modeWhat is it?
not supported
Triple-channel PCI Express modeWhat is it?
not supported
Quad-channel PCI Express modeWhat is it?
not supported
Seven-channel PCI Express modeWhat is it?
not supported
PCI-E x8 countWhat is it?
0
PCI-E x4 countWhat is it?
0
PCI-E x1 countWhat is it?
1
PCI countWhat is it?
2
PCI-X countWhat is it?
0
PCI-x typeWhat is it?
-
SATA
SATA controller presenceWhat is it?
yes
SATA controller modelWhat is it?
not specified
SATA 1.5 Gb/s countWhat is it?
0
SATA 3.0 Gb/s countWhat is it?
4
SATA 6.0 Gb/s countWhat is it?
0
mSATA countWhat is it?
0
SATA RAID modeWhat is it?
no
SATAe countWhat is it?
0
SATA M.2 countWhat is it?
0
SATA M.2 typeWhat is it?
-
IDE
IDE supportWhat is it?
yes
IDE countWhat is it?
1
IDE typeWhat is it?
UltraDMA 100
IDE RAID modeWhat is it?
no
SCSI
SCSI controller presence What is it?
no
SCSI controller modelWhat is it?
-
SCSI countWhat is it?
0
SCSI typeWhat is it?
-
SCSI RAID modeWhat is it?
-
SAS
SAS controller presence What is it?
no
SAS controller modelWhat is it?
-
SAS countWhat is it?
0
SAS RAID modeWhat is it?
-
Ethernet
Ethernet controller presenceWhat is it?
yes
Ethernet speedWhat is it?
1000 MBit/s
Ethernet controller modelWhat is it?
not specified
Wi-Fi/Bluetooth
Wi-Fi supportWhat is it?
no
Wi-Fi typeWhat is it?
-
Bluetooth controller presenceWhat is it?
no
Audio
Audio controller presenceWhat is it?
yes
Audio controller typeWhat is it?
HDA
Audio controller modelWhat is it?
Realtek ALC662
Audio schemeWhat is it?
5.1
Video
Video controller presenceWhat is it?
yes
Video controller modelWhat is it?
Intel GMA 3100
Back interfaces
USB countWhat is it?
8
USB on back panel countWhat is it?
4
USB 3.0 countWhat is it?
0
USB 3.0 on back panel countWhat is it?
0
FireWire interface count (IEEE1394a)What is it?
0
FireWire on back panel interface count (IEEE1394a)What is it?
0
FireWire interface count (IEEE1394b)What is it?
0
FireWire on back panel interface count (IEEE1394b)What is it?
0
Thunderbolt on back panel countWhat is it?
0
S/PDIFWhat is it?
yes
COM-port countWhat is it?
1
COM-port on back panel countWhat is it?
1
GAME/MIDIWhat is it?
no
LPTWhat is it?
yes
LPT on back panelWhat is it?
yes
Component video output on the back panelWhat is it?
no
D-Sub (VGA) on the back panelWhat is it?
yes
DVI on the back panelWhat is it?
no
DisplayPort on the back panelWhat is it?
no
HDMI on the back panelWhat is it?
no
eSATA on the back panelWhat is it?
0
eSATAp on the back panelWhat is it?
0
PS/2 for keyboardWhat is it?
yes
PS/2 for mouseWhat is it?
yes
PS/2 for keyboard on back panelWhat is it?
yes
PS/2 for mouse on back panelWhat is it?
yes
Coaxial output on the back panelWhat is it?
no
Optical output on the back panelWhat is it?
no
Power
Motherboard power jackWhat is it?
24-pin
CPU power jackWhat is it?
4-pin
Cooling system typeWhat is it?
not specified
