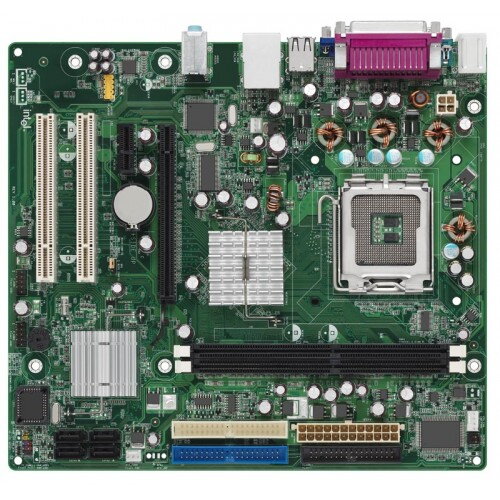

Intel D101GGC LGA775 mainboard

Description: D101GGC have 4 SATA ports, Intel high definition audio, along with a 16x PEG slot. It's a board aimed at the value segment.
The Intel® Desktop Board D101GGC delivers an integrated graphics solution for your next value platform. The Intel® Desktop Board D101GGC supports the Intel® Pentium® D Processor, the Intel® Pentium® 4 Processor with Hyper-Threading Technology and the Intel® Celeron® D processor in the LGA775 package. This uATX board delivers both quality and value by offering features such as High Definition Audio and Realtek* 8101L 10/100 LAN. This desktop board also features PCI Express* x16, DDR 400/333 memory, and 8 USB 2.0 ports.
Processor Support for an Intel® Pentium® D Processor in an LGA775 socket with an 800 MHz system bus
Support for an Intel® Pentium® 4 Processor in an LGA775 socket with an 800 or 533 MHz system bus
Support for an Intel® Celeron® D Processor in an LGA775 socket with a 533 MHz system bus
View all supported processors
Memory Two DDR SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR 400 MHz and DDR 333 MHz DIMMs
Support for up to 2 GB of system memory
Chipset ATI* Radeon* Xpress 200 Chipset
BIOS AwardBIOS* for Intel resident in the 4 Mbit FWH
I/O Control SMSC* SCH5017 Legacy I/O controller for hardware management, diskette drive, serial, parallel, and PS/2 ports
Audio High Definition Audio subsystem using the Realtek* ALC861 audio codec
Video Integrated ATI* Radeon* X300 based graphics
LAN Support 10/100 Mbits/sec LAN subsystem using the Realtek* 8101L LAN adapter device
Peripheral Interfaces 4 USB 2.0 ports
One serial port
One parallel port
Four Serial ATA interfaces
Two parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support
One diskette drive interface
PS/2 keyboard and mouse ports
Expansion Capabilities Two PCI Conventional* bus connectors
One PCI Express* x1 bus add-in card connector
One PCI Express* x16 bus add-in card connector
Related Products
Processors Intel® Pentium® D Processor
Intel® Pentium® 4 Processor
Intel® Celeron® D Processor
Chipsets ATI* Radeon* Xpress 200 Chipset
DIMENSIONS:
Form Factor microATX (9.60 inches by 8.60 inches [243.84 mm by 218.44 mm])
