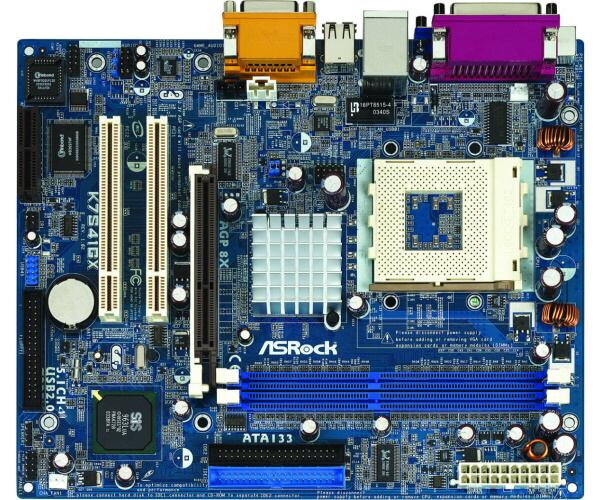

ASRock K7S41GX

Product Specifications
General
CPU - Socket 462, supporting AMD Sempron, Athlon, Athlon XP, Duron
- FSB 333/266/200 MHz
Chipset - Northbridge: SiS® 741GX
- Southbridge: SiS® 963L
Memory - 2 x DDR DIMM
- DDR333/266 non-ECC, un-buffered memory
- Max. capacity of system memory: 2GB
BIOS - 2Mb AMI BIOS with ACPI, SM BIOS 2.3.1, PnP
Audio, Video and Networking
Graphics - Integrated Mirage Graphics
- Shared Memory Max. 64MB
Audio - AC97 CODEC
- 5.1 CH Audio
LAN - 802.3u, 10/100 Ethernet LAN, WOL supported
- Supports PXE
Expansion / Connectivity
Slots - AGP 8X/4X 1.5V
- PCI 2 slots, PCI 2.2
- AMR 1
Connector - IDE 2 x ATA 133/100/66/33
- Floppy 1 connector
- SIR/CIR 1/0
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- CD/AUX/ audio in
- Front panel audio connector
Rear Panel I/O ASROCK I/O:
- Keyboard PS2 x1
- Mouse PS2 x1
- USB2.0 4 ports default on rear panel + 2 ports upgrade via header
- Serial 1COM Port Bracket
- Parallel 1
- Game/MIDI 1
- LAN 1 x RJ45
- Audio I/O Line In/Line Out/Mic.
- VGA 1
Other Features / Miscellaneous
Unique Feature Hybrid Booster:
- CPU Frequency Stepless control
- CPU Multiplier
- CPU Vcore adjustment
- ASRock U-COP
- Boot Failure Guard
Hardware Monitor - CPU Temperature Sensing
- Motherboard Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - Micro ATX, 244mm x 198mm
OS - Microsoft® Windows® 98SE/ME/2000/XP compliant
