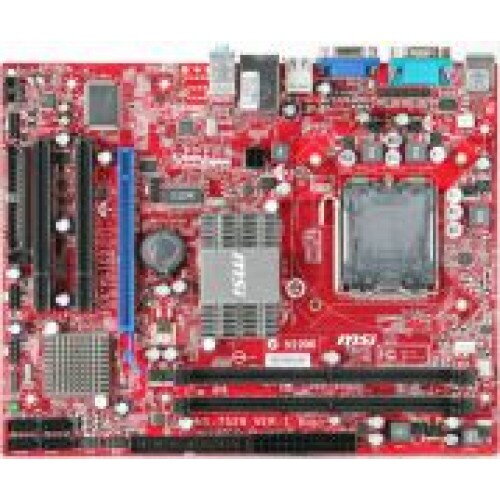

MSI G31TM-P35

CPU
⢠Intel® Core 2 Quad, Core 2 Duo, Pentium and Celeron in the LGA775 package.

Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset
⢠Intel® G31 Chipset

- Supports FSB 800/1066/1333/1600* (OC) MHz.

- Supports dual channel, DDR2 667/800.

- Integrated Intel Graphics Media Accelerator (Intel® GMA 3100)

- Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:75Hz



⢠Intel® ICH7 Chipset

- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.

- 4 SATA ports with transfer rate up to 3Gb/s.

- PCI Master v2.3, I/O APIC.


Main Memory



⢠Supports two unbuffered DIMM of 1.8 Volt DDR2 DRAM

⢠Supports up to 8GB memory size.

⢠Supports dual channel DDR2 memory architecture.

⢠Supports DDR2 667/800 memory interface.

⢠Due to the limitation of G31 chipsets, dual channel support must meet some requirement in the specification of memory modules. please refer to Test Reports for detailed description.


Slots
⢠1 x PCI Express x16 slot (PCI Express Bus SPEC V1.0a compliant)

⢠2 x PCI slots (support 3.3V/ 5V PCI bus Interface)



On-Board IDE/SATA



⢠One Ultra DMA 66/100 IDE controller integrated in ICH7

- Supports PIO, Bus Master operation modes.

- Can connect up to two Ultra ATA drives.



⢠SATA controller integrated in ICH7

- Up to 3Gb/s transfer speed.

- Supports four SATA ports.


Audio
⢠Chip integrated by Realtek® ALC888S

- Flexible 7.1-channel audio with retasking

- Compliant with Azalia 1.0 Spec

- Meet Microsoft Vista Premium SPEC



⢠To reach the 8-channel sound effect, the 7th and 8th channels must be output from front panel if you purchase the mainboard with 3 audio jacks.


LAN
⢠Or Supports PCIE LAN 10/100 Fast Ethernet by Realtek 8103EL


On-Board Pinheaders/ Connectors
- ATX 24-pin power connector

- ATX 4-pin 12V CPU power connector

- CPU / System x 2 FAN connectors

- CD-in connector

- Front panel audio connector

- Front panel connector

- Chassis intrusion switch connector

- 2 x USB 2.0 connector support additional 4 ports

- 1 x Floppy disk drive connector

- 4 x Serial ATA II connectors

- 1 x ATA133 IDE connector

- Clear CMOS jumper

- 1 x Serial port connector

- 1 x SPDIF-out header

- 1 x Parellel port connector

+I/O shield krytka
