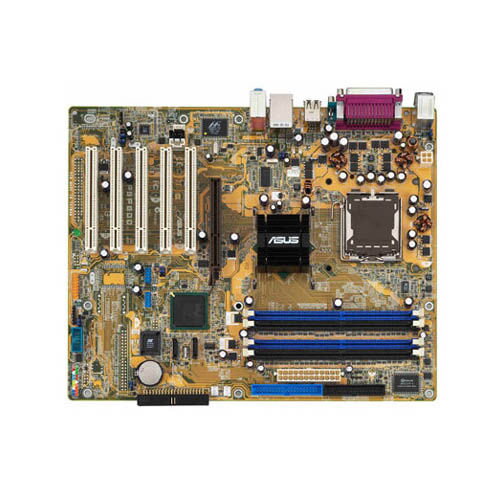

ASUS P5P800 Socket 775

CPU
Intel Socket 775 Pentium® 4/Celeron Processors
Intel® Hyper-Threading Technology ready
Chipset
Intel 865PE
ICH5
Front Side Bus
800/533/ MHz
Memory
4 x DIMM, Max. 4 GB, DDR 400/333/266 SDRAM ,Non-ECC, Memory
Dual Channel memory architecture
ASUS Hyper-Path Technology
Expansion Slots
1 x AGP 8x / 4x (0.8V, 1.5V only) 1 x AGP 4X
Storage
Southbridge
2 xUltraDMA 100/66/33
2 xSATA 3 Gb/s ports
LAN
Marvell 88E8001 Gigabit LAN Controller supporting Gigabit/100/10 BASE-T Ethernet Virtual Cable Tester Net-Diagnosing Utility
Audio
Sound Blaster upgradeable 6 -Channel integrated CODEC
S/PDIF out on back I/O port
Audio Sensing Technology
USB
8 USB 2.0 ports
Overclocking Features
Intelligent overclocking tools
- ASUS AI NOS (Non-delay Overclocking System)
SFS (Stepless Frequency Selection)
- FSB tuning from 100MHz up to 400MHz at 1MHz increment
- Adjustable FSB/DDR ratio. Fixed AGP/PCI frequencies
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
Multi-language BIOS
ASUS MyLogo
ASUS EZ Flash
ASUS CrashFree BIOS 2
Power Loss Restart
Support S/PDIF out interface
ASUS Q-Fan
ASUS Instant Music
BIOS
4 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
Back Panel I/O Ports
1 x Parallel
1 x Audio I/O
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Serial port
1 x S/PDIF Out
1 x LAN(RJ45) port
4 x USB 2.0/1.1
Internal I/O Connectors
2 x USB connectors support additional 4 USB 2.0 ports
1 x CPU Fan connector
1 x Chassis Fan connector
COM2 connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24 -pin ATX Power connector
Front panel audio connector
Game/MIDI port connector
Chassis Intrusion connector
CD/AUX audio in
Support Disc
Drivers
ASUS PC Probe
Anti-virus software (OEM version)
ASUS LiveUpdate Utility
ASUS AI Booster
Accessories
User's manual
x IDE cables
USB2.0 module
x UltraDMA 133/100/66 cables
x Floppy disk drive cables
x SATA cables
I/O Shield
InterVideo WinDVD Suite (Gold version only)
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
