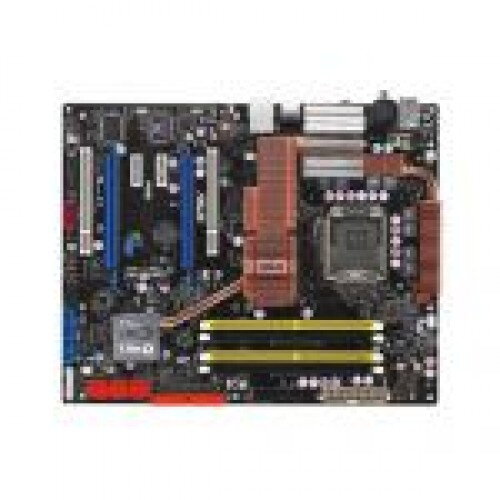

ASUS P5E

CPU
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Compatible with Intel® 05B/05A/06 processors

Support Intel® 45nm CPU
Chipset
Intel® X38 Intel ICH9R Intel Fast Memory Access Technology
Front Side Bus
1600/1333/1066/800 MHz
Memory
4 x DIMM, Max. 8 GB, DDR2 1200*/1066/800/667 Non-ECC,Un-buffered Memory

Dual Channel memory architecture

*DDR2 1200 is O.C. speed

**For the X.M.P. support, CPUs with FSB 1333 or above are recommended.

***Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts).

****When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
2 x PCIe x16 (both @ x16 mode) supports CrossFire Technology

3 x PCIe x1

2 x PCI
Storage
Southbridge

1 xUltraDMA

6 xSATA 3 Gb/s ports

Support RAID 0,1,5,10

JMicron® PATA and SATA controller

1 xUltraDMA 133/100/66 up to 2 PATA devices
LAN
Marvell88E8056® PCIe Gigabit LAN controller featuring AI NET2
Audio
SupremeFX II Audio Card

ADI® AD1988B 8-Channel High Definition Audio CODEC

Coaxial / Optical S/PDIF out ports

ASUS Noise Filter

Support Jack-Sensing, Enumeration, Multi-streaming

AI Audio 2
IEEE 1394
VIA VT6308P controller supports 2 x 1394a port(s) (one at midboard; one at back panel)
USB
12 USB 2.0/1.1 ports (6 ports at mid-board, 6ports at back panel)
ASUS Unique Features
ASUS Power Saving Solution

- ASUS EPU (Energy Processing Unit)

- ASUS 3rd Generation 8-phase Power

- ASUS AI Nap

ASUS AI Lifestyle

- ASUS AI Direct Link

ASUS Quiet Thermal Solution

- ASUS Fanless Design: Pure Copper Heat-pipe solution

- ASUS Fanless Design: Stack Cool 2

- ASUS Q-Fan 2

- ASUS Optional Fan for Water-cooling or Passive-Cooling only



ASUS EZ DIY

- ASUS Q-Connector

- ASUS Q-Shield

- ASUS O.C. Profile

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2
Special Features
Multi-language BIOS

ASUS MyLogo 3
Overclocking Features
Intelligent overclocking tools

- ASUS AI Booster Utility

- 2-Phase DDR2

Precision Tweaker 2

- vCore: Adjustable CPU voltage at 0.00625V increment

- vChipset (N.B.) 25-step voltage control

- vFSB Termination: 15-step voltage control

- vCPU PLL: 64-step voltage control

SFS (Stepless Frequency Selection)

- FSB tuning from 200MHz up to 800MHz at 1MHz increment

- Memory tuning from 667MHz up to 3200MHz

- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports
1 x PS/2 Keyboard

1 x S/PDIF Out

1 x IEEE 1394a

1 x LAN(RJ45) port

6 x USB 2.0/1.1

8 -Channel Audio I/O
Internal I/O Connectors
3 x USB connectors

1 x Floppy disk drive connector

1 x IDE connector

6 x SATA connectors

1 x IEEE 1394a connector

2 x Chassis Fan connector

1 x Power Fan connector

1 x S/PDIF Out connector

2 x 4-pin ATX 12V Power connector

24-pin Power connector

Front panel audio connector

Chassis Intrusion connector

CD/AUX audio in

System Panel
BIOS
16 Mb Flash ROM Multi-language BIOS

DMI 2.0

AMI BIOS

PnP

WfM 2.0

SM BIOS 2.3

ACPI 2.0a

ASUS EZ Flash 2

ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories
User's manual

USB2.0 module

x UltraDMA 133/100/66 cable

x Floppy disk drive cable

x SATA cable(s)

SATA power cable

3 in 1 Q-connector

ASUS Q-shield

1 x Optional Fan for Water-Cooling or Passive-Cooling only

SupremeFX II Audio card
Support Disc
Drivers

ASUS PC Probe II

ASUS AI Suite

Anti-virus software (OEM version)

ASUS Update

Image-Editing Suite
Form Factor
ATX Form Factor

12 inch x9.6 inch ( 30.5 cm x24.4 cm )
