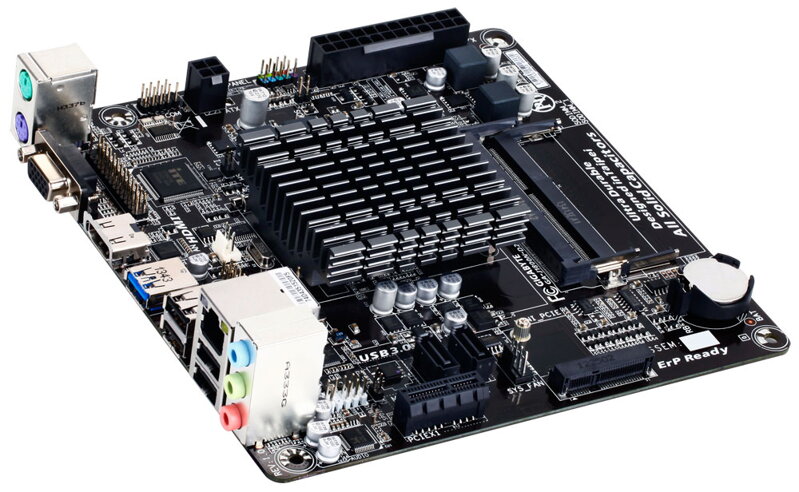

GIGABYTE GA-J1800N-D2H (rev. 1.x) Intel Celeron J1800

CPU
Built in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
1 MB Cache
Memory
2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
* If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket.
Dual channel memory architecture
Support for DDR3/-L 1333 MHz memory modules
Support for non-ECC memory modules
Onboard Graphics Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 2560x1600
1 x HDMI port, supporting a maximum resolution of 1920x1080
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x1 slot
1 x Mini PCI Express x1 slot
* This socket does not support USB Bluetooth signals.
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
(For Mini-PCIE card/no mSATA card)
Storage Interface SoC:
2 x SATA 3Gb/s connectors
USB SoC:
1 x USB 3.0/2.0 port on the back panel
SoC + GL850S USB 2.0 Hub:
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 3Gb/s connectors
1 x USB 2.0/1.1 header
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x debug card header
1 x Clear CMOS jumper
1 x chassis intrusion header
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI port
1 x USB 3.0/2.0 port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for @BIOS
Support for Xpress Install
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
Support for ON/OFF Charge
Bundle Software
Norton® Internet Security (OEM version)
Intel® Smart Connect Technology
Operating System
Support for Windows 10/8.1/8/7
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
