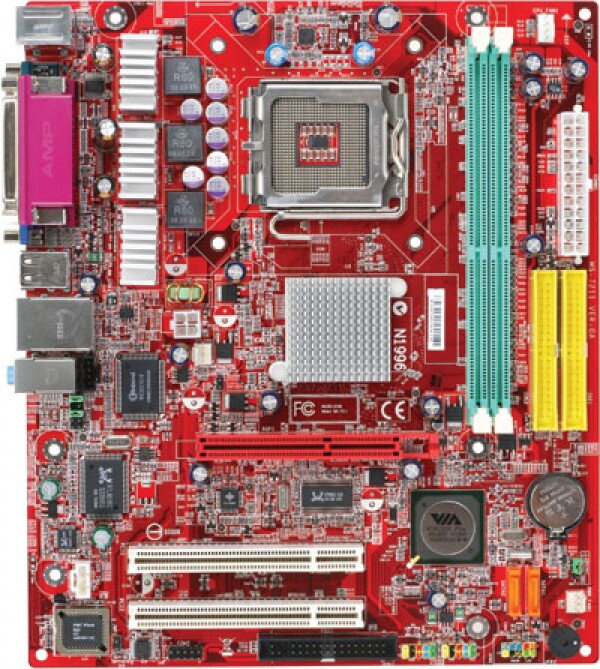

MSI PM8M3-V H MS-7221

Podpora CPU:

Marketing Name PM8M3-V MSI Model MS-7211
PCB Version 4.1 Since BIOS Version 3.5
CPU FSB / HT BUS Ratio Result
Pentium D (65nm, Presler, Dual Core, FSB800, L2 Cache 2x2MB)
Pentium D 915 (2.8GHz, C1, 95W) 800 14 OK
Pentium D 915 (2.8GHz, D0, 95W) 800 14 OK
Pentium D 920 (2.8GHz, B1, 95W) 800 14 OK
Pentium D 925 (3.0GHz, C1, 95W) 800 15 OK
Pentium D 925 (3.0GHz, D0, 95W) 800 15 OK
Pentium D 930 (3.0GHz, B1, 95W) 800 15 OK
Pentium D 930 (3.0GHz, C1, 95W) 800 15 OK
Pentium D 935 (3.2GHz, D0, 95W) 800 16 OK
Pentium D 940 (3.2GHz, C1, 95W) 800 16 OK
Pentium D 945 (3.4GHz, C1, 95W) 800 17 OK
Pentium D 945 (3.4GHz, D0, 95W) 800 17 OK
Pentium D 950 (3.4GHz, C1, 95W) 800 17 OK
Pentium D 950 (3.4GHz, D0, 95W) 800 17 OK
Pentium D 960 (3.6GHz, rev.D0) sample 800 18 OK
Pentium D (64-bit, Smithfield, Dual Core, FSB533, L2 Cache 2x1MB)
Pentium D 805 (2.66GHz, B0, 95W) 533 20 OK
Pentium D (64-bit, Smithfield, Dual Core, FSB800, L2 Cache 2x1MB)
Pentium D 820 (2.8GHz, A, 95W) 800 14 OK
Pentium D 820 (2.8GHz, B0, 95W) 800 14 OK
Pentium 4 (65nm, Cedar Mill, FSB800, L2 Cache 2MB)
Pentium 4 631 (3.0GHz, B1, 86W) 800 15 OK
Pentium 4 631 (3.0GHz, C1, 86W) 800 15 OK
Pentium 4 631 (3.0GHz, D0, 65W) 800 15 OK
Pentium 4 641 (3.2GHz, B1, 86W) 800 16 OK
Pentium 4 641 (3.2GHz, C1, 86W) 800 16 OK
Pentium 4 641 (3.2GHz, D0, 65W) 800 16 OK
Pentium 4 651 (3.4GHz, B1, 86W) 800 17 OK
Pentium 4 651 (3.4GHz, C1, 86W) 800 17 OK
Pentium 4 651 (3.4GHz, D0, 65W) 800 17 OK
Pentium 4 661 (3.6GHz, B1, 86W) 800 18 OK
Pentium 4 661 (3.6GHz, C1, 86W) 800 18 OK
Pentium 4 (64-bit, Prescott, FSB800, L2 Cache 1MB)
Pentium 4 521 (2.8GHz, G1, 84W) 800 14 OK
Pentium 4 531 (3.0GHz, G1, 84W) 800 15 OK
Pentium 4 541 (3.2GHz, G1, 84W) 800 16 OK
Pentium 4 551 (3.4GHz, G1, 84W) 800 17 OK
Pentium 4 561 (3.6GHz, E0, 115W) 800 18 OK
Pentium 4 571 (3.8GHz, E0, 115W) 800 19 OK
Pentium 4 (64-bit, Prescott, FSB800, L2 Cache 2MB)
Pentium 4 630 (3.0GHz, R0, 84W) 800 15 OK
Pentium 4 640 (3.2GHz, R0, 84W) 800 16 OK
Pentium 4 650 (3.4GHz, R0, 84W) 800 17 OK
Pentium 4 660 (3.6GHz, R0, 115W) 800 18 OK
Pentium 4 662 (3.6GHz, R0 ,84w) 800 18 OK
Pentium 4 662 (3.6GHz, R0, 115W) 800 18 OK
Pentium 4 670 (3.8GHz, rev.R0) 800 19 OK
Pentium 4 672 (3.8GHz, R0, 115W) 800 19 OK
Pentium 4 (64Bit, Prescott, FSB533, L2 Cache 1MB)
Pentium 4 506 (2.66GHz, G1, 84W) 533 20 OK
Pentium 4 511 (2.8GHz, G1, 84W) 533 21 OK
Pentium 4 516 (2.93GHz, G1, 84W) 533 22 OK
Pentium 4 517 (2.93GHz, G1, 84W) 533 22 OK
Pentium 4 519K (3.06GHz, G1, 84W) 533 23 OK
Pentium 4 524 (3.06GHz, G1, 84W) 533 23 OK
Celeron D (Cedar Mill, FSB533, L2 Cache 512KB)
Celeron D 347 (3.06GHz, C1, 86w) 533 23 OK
Celeron D 347 (3.06GHz, D0, 65w) 533 23 OK
Celeron D 352 (3.2GHz, C1, 86w) 533 24 OK
Celeron D 352 (3.2GHz, D0, 65w) 533 24 OK
Celeron D 356 (3.33GHz, C1, 86w) 533 25 OK
Celeron D 356 (3.33GHz, D0, 65w) 533 25 OK
Celeron D 360 (3.46GHz, D0, 65w) 533 26 OK
Celeron D 365 (3.6GHz, D0, 65W) 533 27 OK
Celeron D (64-bit, Prescott, FSB533, L2 Cache 256KB)
Celeron D 326 (2.53GHz, G1, 84W) 533 19 OK
Celeron D 331 (2.66GHz, G1, 84W) 533 20 OK
Celeron D 336 (2.80GHz, G1, 84W) 533 21 OK
Celeron D 341 (2.93GHz, G1, 84W) 533 22 OK
Celeron D 346 (3.06GHz, G1, 84W) 533 23 OK
Celeron D 351 (3.2GHz, G1, 84W) 533 24 OK
Celeron D 355 (3.33GHz, G1, 73W) 533 25 OK

Marketing Name PM8M3-V MSI Model MS-7211
PCB Version 3.0 Since BIOS Version 1.5
Note 9xx series no support EIST.
CPU FSB / HT BUS Ratio Result
Pentium D (65nm, Presler, Dual Core, FSB800, L2 Cache 2x2MB)
Pentium D 915 (2.8GHz, C1, 95W) 800 14 OK
Pentium D 920 (2.8GHz, B1, 95W) 800 14 OK
Pentium D 925 (3.0GHz, C1, 95W) 800 15 OK
Pentium D 925 (3.0GHz, D0, 95W) 800 15 OK
Pentium D 930 (3.0GHz, B1, 95W) 800 15 OK
Pentium D 930 (3.0GHz, C1, 95W) 800 15 OK
Pentium D 935 (3.2GHz, D0, 95W) 800 16 OK
Pentium D 940 (3.2GHz, C1, 95W) 800 16 OK
Pentium D 945 (3.4GHz, C1, 95W) 800 17 OK
Pentium D 945 (3.4GHz, D0, 95W) 800 17 OK
Pentium D 950 (3.4GHz, C1, 95W) 800 17 OK
Pentium D 960 (3.6GHz, rev.D0) sample 800 18 OK
Pentium D (64-bit, Smithfield, Dual Core, FSB533, L2 Cache 2x1MB)
Pentium D 805 (2.66GHz, B0, 95W) 533 20 OK
Pentium D (64-bit, Smithfield, Dual Core, FSB800, L2 Cache 2x1MB)
Pentium D 820 (2.8GHz, A, 95W) 800 14 OK
Pentium D 820 (2.8GHz, B0, 95W) 800 14 OK
Pentium 4 (65nm, Cedar Mill, FSB800, L2 Cache 2MB)
Pentium 4 631 (3.0GHz, B1, 86W) 800 15 OK
Pentium 4 631 (3.0GHz, C1, 86W) 800 15 OK
Pentium 4 631 (3.0GHz, D0, 65W) 800 15 OK
Pentium 4 641 (3.2GHz, B1, 86W) 800 16 OK
Pentium 4 641 (3.2GHz, C1, 86W) 800 16 OK
Pentium 4 641 (3.2GHz, D0, 65W) 800 16 OK
Pentium 4 651 (3.4GHz, B1, 86W) 800 17 OK
Pentium 4 651 (3.4GHz, C1, 86W) 800 17 OK
Pentium 4 651 (3.4GHz, D0, 65W) 800 17 OK
Pentium 4 661 (3.6GHz, B1, 86W) 800 18 OK
Pentium 4 661 (3.6GHz, C1, 86W) 800 18 OK
Pentium 4 (64-bit, Prescott, FSB800, L2 Cache 1MB)
Pentium 4 521 (2.8GHz, G1, 84W) 800 14 OK
Pentium 4 531 (3.0GHz, G1, 84W) 800 15 OK
Pentium 4 541 (3.2GHz, G1, 84W) 800 16 OK
Pentium 4 551 (3.4GHz, G1, 84W) 800 17 OK
Pentium 4 561 (3.6GHz, E0, 115W) 800 18 OK
Pentium 4 571 (3.8GHz, E0, 115W) 800 19 OK
Pentium 4 (64-bit, Prescott, FSB800, L2 Cache 2MB)
Pentium 4 630 (3.0GHz, R0, 84W) 800 15 OK
Pentium 4 640 (3.2GHz, R0, 84W) 800 16 OK
Pentium 4 650 (3.4GHz, R0, 84W) 800 17 OK
Pentium 4 660 (3.6GHz, R0, 115W) 800 18 OK
Pentium 4 662 (3.6GHz, R0 ,84w) 800 18 OK
Pentium 4 662 (3.6GHz, R0, 115W) 800 18 OK
Pentium 4 670 (3.8GHz, rev.R0) 800 19 OK
Pentium 4 672 (3.8GHz, R0, 115W) 800 19 OK
Pentium 4 (Prescott, FSB800, L2 Cache 1MB)
Pentium 4 520(J) (2.8GHz, D0, 84W) 800 14 OK
Pentium 4 530(J) (3.0GHz, D0, 84W) 800 15 OK
Pentium 4 540(J) (3.2GHz, D0, 84W) 800 16 OK
Pentium 4 550(J) (3.4GHz, D0, 84W) 800 17 OK
Pentium 4 560(J) (3.6GHz, D0, 115W) 800 18 OK
Pentium 4 Extreme Edition
Pentium 4 (Northwood) Extreme Edition 3.4GHz, M0, 109.6W 800 17 OK
Pentium 4 (64Bit, Prescott, FSB533, L2 Cache 1MB)
Pentium 4 506 (2.66GHz, G1, 84W) 533 20 OK
Pentium 4 511 (2.8GHz, G1, 84W) 533 21 OK
Pentium 4 516 (2.93GHz, G1, 84W) 533 22 OK
Pentium 4 517 (2.93GHz, G1, 84W) 533 22 OK
Pentium 4 519K (3.06GHz, G1, 84W) 533 23 OK
Pentium 4 524 (3.06GHz, G1, 84W) 533 23 OK
Pentium 4 (Prescott, FSB533, L2 Cache 1MB)
Pentium 4 505(J) (2.66GHz, D0, 84w) 533 20 OK
Pentium 4 515(J) (2.93GHz, D0, 84w) 533 22 OK
Celeron D (Cedar Mill, FSB533, L2 Cache 512KB)
Celeron D 347 (3.06GHz, C1, 86w) 533 23 OK
Celeron D 347 (3.06GHz, D0, 65w) 533 23 OK
Celeron D 352 (3.2GHz, C1, 86w) 533 24 OK
Celeron D 352 (3.2GHz, D0, 65w) 533 24 OK
Celeron D 356 (3.33GHz, C1, 86w) 533 25 OK
Celeron D 356 (3.33GHz, D0, 65w) 533 25 OK
Celeron D 360 (3.46GHz, D0, 65w) 533 26 OK
Celeron D 365 (3.6GHz, D0, 65W) 533 27 OK
Celeron D (64-bit, Prescott, FSB533, L2 Cache 256KB)
Celeron D 326 (2.53GHz, G1, 84W) 533 19 OK
Celeron D 331 (2.66GHz, G1, 84W) 533 20 OK
Celeron D 336 (2.80GHz, G1, 84W) 533 21 OK
Celeron D 346 (3.06GHz, G1, 84W) 533 23 OK
Celeron D 351 (3.2GHz, G1, 84W) 533 24 OK
Celeron D 355 (3.33GHz, G1, 73W) 533 25 OK
Celeron D (Prescott, FSB533, L2 Cache 256KB)
Celeron D 325J (2.53GHz, E0, 84w) 533 19 OK
Celeron D 330J (2.66GHz, E0, 84w) 533 20 OK
Celeron D 335J (2.8GHz, E0, 84w) 533 21 OK
Celeron D 340J (2.93GHz, E0, 84w) 533 22 OK

Marketing Name PM8M3-V MSI Model MS-7211
PCB Version 1.0 Since BIOS Version 1.5
Note 9xx series no support EIST.
CPU FSB / HT BUS Ratio Result
Pentium 4 (64-bit, Prescott, FSB800, L2 Cache 1MB)
Pentium 4 521 (2.8GHz, G1, 84W) 800 14 OK
Pentium 4 531 (3.0GHz, G1, 84W) 800 15 OK
Pentium 4 541 (3.2GHz, G1, 84W) 800 16 OK
Pentium 4 551 (3.4GHz, G1, 84W) 800 17 OK
Pentium 4 561 (3.6GHz, E0, 115W) 800 18 OK
Pentium 4 571 (3.8GHz, E0, 115W) 800 19 OK
Pentium 4 (64-bit, Prescott, FSB800, L2 Cache 2MB)
Pentium 4 630 (3.0GHz, R0, 84W) 800 15 OK
Pentium 4 640 (3.2GHz, R0, 84W) 800 16 OK
Pentium 4 650 (3.4GHz, R0, 84W) 800 17 OK
Pentium 4 660 (3.6GHz, R0, 115W) 800 18 OK
Pentium 4 662 (3.6GHz, R0 ,84w) 800 18 OK
Pentium 4 662 (3.6GHz, R0, 115W) 800 18 OK
Pentium 4 670 (3.8GHz, rev.R0) 800 19 OK
Pentium 4 672 (3.8GHz, R0, 115W) 800 19 OK
Pentium 4 (Prescott, FSB800, L2 Cache 1MB)
Pentium 4 520(J) (2.8GHz, D0, 84W) 800 14 OK
Pentium 4 530(J) (3.0GHz, D0, 84W) 800 15 OK
Pentium 4 540(J) (3.2GHz, D0, 84W) 800 16 OK
Pentium 4 550(J) (3.4GHz, D0, 84W) 800 17 OK
Pentium 4 560(J) (3.6GHz, D0, 115W) 800 18 OK
Pentium 4 Extreme Edition
Pentium 4 (Northwood) Extreme Edition 3.4GHz, M0, 109.6W 800 17 OK
Pentium 4 (64Bit, Prescott, FSB533, L2 Cache 1MB)
Pentium 4 506 (2.66GHz, G1, 84W) 533 20 OK
Pentium 4 511 (2.8GHz, G1, 84W) 533 21 OK
Pentium 4 516 (2.93GHz, G1, 84W) 533 22 OK
Pentium 4 517 (2.93GHz, G1, 84W) 533 22 OK
Pentium 4 519K (3.06GHz, G1, 84W) 533 23 OK
Pentium 4 524 (3.06GHz, G1, 84W) 533 23 OK
Pentium 4 (Prescott, FSB533, L2 Cache 1MB)
Pentium 4 505(J) (2.66GHz, D0, 84w) 533 20 OK
Pentium 4 515(J) (2.93GHz, D0, 84w) 533 22 OK
Celeron D (64-bit, Prescott, FSB533, L2 Cache 256KB)
Celeron D 326 (2.53GHz, G1, 84W) 533 19 OK
Celeron D 331 (2.66GHz, G1, 84W) 533 20 OK
Celeron D 336 (2.80GHz, G1, 84W) 533 21 OK
Celeron D 341 (2.93GHz, G1, 84W) 533 22 OK
Celeron D 346 (3.06GHz, G1, 84W) 533 23 OK
Celeron D 351 (3.2GHz, G1, 84W) 533 24 OK
Celeron D (Prescott, FSB533, L2 Cache 256KB)
Celeron D 325J (2.53GHz, E0, 84w) 533 19 OK
Celeron D 330J (2.66GHz, E0, 84w) 533 20 OK
Celeron D 335J (2.8GHz, E0, 84w) 533 21 OK
Celeron D 340J (2.93GHz, E0, 84w) 533 22 OK
