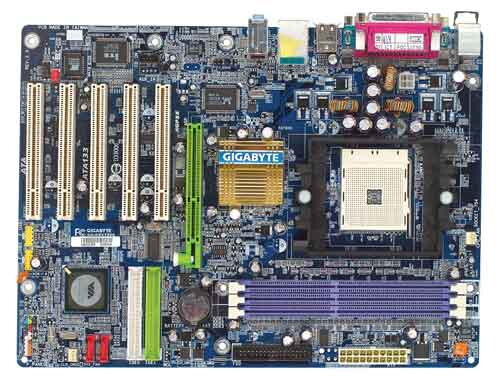

GIGABYTE GA-K8VT800 (rev. 2.x)

CPU
Socket 754 for AMD Athlon64
Chipset
VIA K8T800 Chipset
VIA VT8237R Chipset
Super I/O: ITE IT8705 chip
Integrated peripherals
Realtek 8100C Ethernet controller
Realtek ALC850 Audio AC'97 Codec
Memory
Type: DDR400/ 333/ 266- 184pin
Max capacity: Up to 3GB by 3 DIMM slots
Internal I/O Connectors
2 x Serial ATA connector
2 x UDMA ATA 133/100/66 Bus Master IDE connectors
1 x FDD connector
2 x USB 2.0/1.1 connectors (supports 4 ports)
S/P DIF input/output pin header
3 x cooling fan pin headers
CD in
1 x Game/Midi connector
Expansion Slots
1 x AGP slot (8x/4x-AGP 3.0 compliant), supports 1.5v display card only.
5 x PCI slots (PCI 2.2 compliant)
Back Panel Connectors
PS/2 Keyboard / Mouse
4 x USB 2.0/1.1 ports
1 x RJ45 port
2 x COM ports
1 x LPT
Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
CPU/AGP/DIMM setting
CPU FSB / Vcore Voltage adjustable via BIOS
AGP Voltage / Clock adjustable via BIOS
DIMM Voltage / Clock adjustable via BIOS
Power
ATX power connector and ATX 12V connector
Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
Form Factor
ATX form factor
30.5 x 21.5 cm
H/W Monitoring
System health status auto-detect and report by BIOS
Hardware detecting and reporting for case open, CPU voltage, and fan speed.
BIOS
2M bit flash ROM, Award BIOS
Other Features
Xpress™ Installation,
Xpress™ Recovery
Xpress™ BIOS rescue
Q-Flash™
@BIOS™
