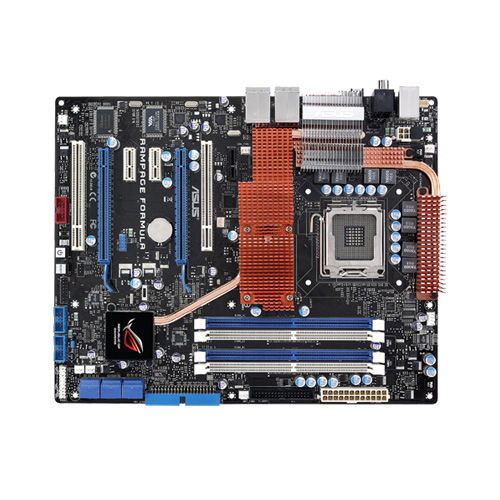

ASUS RAMPAGE FORMULA

CPU
Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm CPU
* Refer to www.asus.com for Intel CPU support list
Chipset
Intel X48
Intel ICH9R
Intel Fast Memory Access Technology
Front Side Bus
1600/1333/1066/800 MHz
Memory
4 x DIMM, Max. 8 GB, DDR2 1200*/1066/800/667 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*DDR2 1200 is O.C. speed.
**Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts).
**When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
2 x PCIe 2.0 x16 , support at full x16, x16 speed
3 x PCIe x1 ( the PCIEx1_1 (black) is compatible with audio slot)
2 x PCI 2.2
CrossFire
Support ATI CrossFire graphics cards
Storage
Southbridge
6 xSATA 3 Gb/s ports
Intel Matrix Storage Technology Support RAID 0,1,5,10
JMicron® JMB368 PATA controller
1 xUltraDMA 133/100/66/33 for up to 2 PATA devices
LAN
Dual Gigabit LAN controllers, both featuring AI NET2
Support Teaming Technology
Audio
SupremeFX II Audio Card
ADI 1988B 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports at back I/O
ASUS Noise Filter
IEEE 1394
2 x 1394a ports (1 port at back I/O, 1 port onboard)
USB
12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)
Overclocking Features
Extreme Tweaker
Loadline Calibration
2-Phase DDR 2
Intelligent overclocking tools
- CPU Level Up
- AI Gear 3
- AI Overclocking (intelligent CPU frequency tuner)
- ASUS AI Booster Utility
- ASUS O.C. Profile: overclocking configuration-sharing tool
Overclocking Protection
- COP EX (Component Overheat Protection - EX)
- Voltiminder LED
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
External LCD Poster
Onboard Switches: Power / Reset / Cls CMOS (at rear)
ASUS EPU(Energy Processing Unit)
ASUS Q-Connector
ASUS Q-Fan 2
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS MyLogo3
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x IEEE 1394a
2 x LAN(RJ45) port
6 x USB 2.0/1.1
1 x Clr CMOS switch
1 x Optical + 1 x Coaxial S/PDIF Output
Internal I/O Connectors
3 x USB connectors supports additional 6 USB 2.0 ports
1 x Floppy disk drive connector
1 x IDE connector
6 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
3 x Chassis Fan connector
1 x Power Fan connector
8 x Fan connectors: 1 x CPU / 1 x PWR / 3 x Chassis / 3 x Optional
1 x S/PDIF Out connector
1 x8-pin ATX 12V Power connector
24 Power connector
3 x thermal sensor connector
1 x En/Dis-able Clr CMOS connector
Chassis Intrusion connector
System Panel
BIOS
16 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.4
ACPI 2.0a
Multi-language BIOS
Manageability
WOL by PME,WOR by PME,Chasis Intrusion,PXE
Accessories
External LCD Poster
ASUS Optional Fan
SupremeFX II Audio Card
3 in 1 ASUS Q-Connector Kit
UltraDMA 133/100/66 cable
Floppy disk drive cable
SATA cables
SATA power cables
2-port USB2.0 + IEEE 1394a module
I/O Shield
Cable Ties
User's manual
Support Disc
The hottest 3D Game: S.T.A.L.K.E.R.
Support DVD:
- Drivers and applications
ASUS PC Probe II
ASUS Update
ASUS AI Suite
Futuremark ® 3DMark® 06 Advanced Edition
Kaspersky® Anti-Virus
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x24.5 cm )
