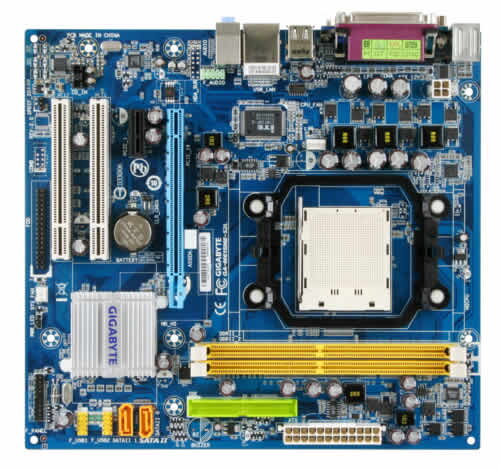

GIGABYTE GA-M61SME-S2L REV:2.0

CPU
Socket AM2 for AMD Athlon™64 FX / Athlon™64 X2 Dual-Core / Athlon™64 / Sempron™processor
Chipset
NVIDIA® GeForce 6100 / nForce 405 chipset
Super I/O: ITE IT8716 chip
Integrated Peripherals
Realtek RTL8201 phy
Realtek ALC662 Audio Codec
Memory
2 DDR2 DIMM memory slots (supports up to 8GB memory)(Note 1)
Supports dual channel DDR2 800/667/533/400 DIMMs
Supports 1.8V DDR2 DIMMs
(Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB; Windows 64-bit operating system doesn't have such limitation.
Internal I/O Connectors
1 24-pin ATX power connector
1 4-pin ATX 12V power connector
1 floppy connector
1 IDE connectors
2 SATA 3Gb/s connectors
1 CPU fan connector
1 system fan connector
1 front panel connector
1 front audio connector
1 CD In connector
1 Power LED connector
2 USB 2.0/1.1 connectors for additional 4 USB 2.0/1.1 ports by cables
1 SPDIF Out connector
1 Chassis Intrusion connector
1 HDA_SUR connector
Expansion Slots
1 PCI Express x 16 slot (Note 2)
1 PCI Express x 1 slot
2 PCI slots
(Note 2) The GA-M61SME-S2L supports up to PCI Express x8 mode. (please refer to the VGA cards support list)
Back Panel Connectors
1 PS/2 keyboard port
1 PS/2 mouse port
1 parallel port
1 COMA port
1 VGA port
4 USB 2.0/1.1 ports
1 RJ-45 port
3 audio jacks (Line In / Line Out / MIC In)
Power ATX power connector and ATX 12V connector
Form Factor Micro ATX form factor; 24.4cm x 22.5cm
H/W Monitoring
System voltage detection
CPU / System temperature detection
CPU / System fan speed detection
CPU / System warning temperature
CPU / System fan failure warning
Supports CPU Smart Fan function(Note3)
(Note 3) Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.
BIOS
1 4Mbit flash ROM
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Other Features
Supports @BIOS
Supports Download Center
Supports Q-Flash
Supports EasyTune(Note 4)
Supports Xpress Install
Supports Xpress Recovery2
Supports Xpress BIOS Rescue
(Note 4) EasyTune functions may vary depending on different motherboards.
