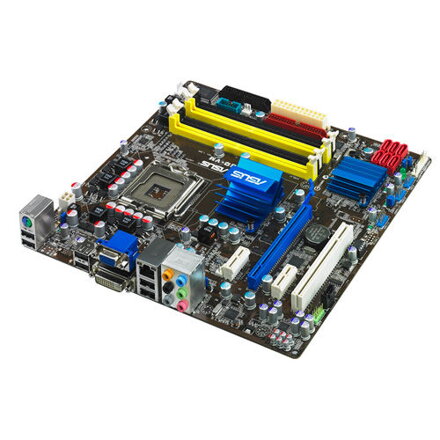

ASUS P5Q-VM

Intel® LGA775 Platform
Intel® G45/ICH10 chipset
LGA775 socket for Intel® Core™2 Extreme/Core™2 Quad/ Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors
Dual-channel DDR2 1066(O.C.)/800/667 MHz
6 x SATA 3 Gb/s ports
12*USB
ASUS EPU-4 Engine
ASUS Express Gate
100% Japan-made Solid Capacitor
VRM 5000hrs lifespan @105°C, 500,000hrs @65°C
Dual-VGA Output: DVI/RGB Support

CPU
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm Multi-Core CPU
Chipset
Intel® G45 / ICH10 with Intel® Fast Memory Access (FMA) Technology
Front Side Bus
1600/1333/1066/800 MHz
Memory
4 x DIMM, Max. 16 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Please refer to www.asus.com or user manual for Memory QVL.
When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
1 x PCIe 2.0 x16
2 x PCIe x1
1 x PCI
VGA
Integrated Intel® Graphics Media Accelerator X4500HD
Dual VGA output support: DVI-D and RGB
Supports RGB with max. resolution 2048 x 1536@75Hz
Supports DVI with max. resolution 1920 x 1080@60Hz
Maximum shared memory of 1849 MB
Supports Microsoft® DirectX® 10, OpenGL® 2.1, Pixel Shader 4.0
Storage
Southbridge
6 xSATA 3 Gb/s ports
Marvell 88SE6102 PATA controller
1 xUltraDMA 133/100/66 for up to 2 PATA devices

LAN
Realtek® 8111C PCI-E Gigabit LAN controllers, featuring AI Net2
Audio
Realtek® ALC 1200 8 -Channel High-Definition Audio CODEC
- Support Jack-dectection, Multi-streaming
- ASUS Noise Filtering
USB
12 USB 2.0 ports (6 ports at mid-board, 6ports at back panel)
ASUS Unique Features
ASUS Power Saving solution:
- ASUS EPU-4 Engine
- AI Nap
ASUS Express Gate
ASUS Quiet Thermal Solution:
- ASUS Fanless Design
- ASUS Fan Xpert
ASUS Crystal Sound:
- ASUS Noise Filtering
ASUS EZ DIY:
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Overclocking Features
Precision Tweaker 2:
- vCore:Adjustable CPU voltage at 0.00625V increment
- vDIMM:45-step DRAM voltage control
- vChipset (NB):30-step chipset voltage control
- vCPU PLL:35-step CPU PLL voltage control
- vFSB Termination:25-step reference voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 180MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS MyLogo 2™
Back Panel I/O Ports
1 x PS/2 Keyboard/Mouse combo port
1 x D-Sub port
1 x DVI port
1 x LAN (RJ45) port
6 x USB 2.0/1.1
8-channel Audio I/O
Internal I/O Connectors
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in connector
24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
System Panel
BIOS
8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.4, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WOL by PME, WOR by PME, WOR by Ring, Chassis Intrusion, PXE
Accessories
1 x UltraDMA 133/100/66 cable
1 x FDD cable
2 x Serial ATA cables
1 x Serial ATA power cable for two device
I/O Shield
User's manual
Support Disc
Drivers
ASUS Express Gate
ASUS PC Probe II
ASUS Update
ASUS AI Suite
Anti-virus software (OEM version)
Image-Editing Suite
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
