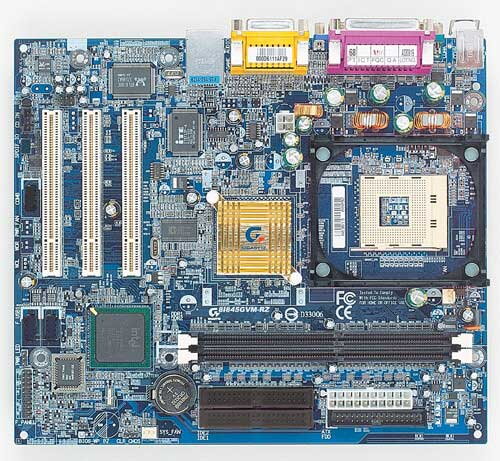

Gigabyte 8I845GVM-RZ mainboard

CPU
Socket 478 for Intel ® Pentium® 4 with HT Technology
Front Side Bus
FSB 533 / 400
Chipset
Intel® 82845GV GMCH
Intel® 82801DB ICH4
Realtek ALC655 Audio AC'97 CODEC
Realtek 8100C LAN chip
Super I/O: ITE I/O IT8712F chip
2M bit flash ROM
Memory
Type: DDR333/266
2 x DIMM
Max capacity: Up to 2 GB
Expansion Slots
3 x PCI (PCI 2.2 compliant)
Internal I/O Connectors
1 x FDD
2 x UDMA ATA 100/66 Bus Master IDE
2 x USB 2.0
S/P DIF output
2 x cooling fan pin headers
CD/AUX in headers
1 x WOL header
1 x COM port
Back Panel Connectors
2 x USB 2.0 ports
1 x LPT
1 x COM port
1 x VGA port
1 x RJ45 port
Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
PS/2 Keyboard/Mouse connector
1 x Game/Midi port
H/W Monitoring
System health status auto-detect and report by BIOS
H/W detect and report power-in voltage, CPU voltage, and Fan speed.

Form Factor
mATX
24.3cm x 20.9cm
CPU/AGP/DIMM setting
CPU FSB / Multiplier
AGP frequency adjustable by BIOS
Memory frequency adjustable by BIOS
Other Features
IDE #1-#4, SCSI, LS120, ZIP, CD-ROM and USB bootable.
Suspend to RAM (STR)
Supports USB KB / MS wake up from S3
Supports PXE protocol
DMI ver 2.3 compliant
