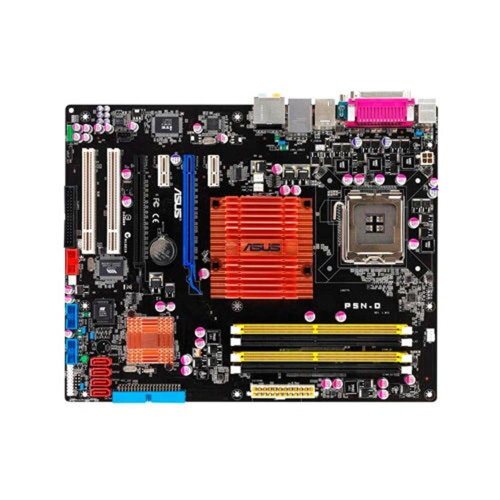

ASUS P5N-D GREEN Rev. 1.02G mainboard

CPU
Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm CPU
Chipset
NVIDIA nForce 750i SLI
Front Side Bus
1333/1066/800 MHz
Memory
4 x DIMM, Max. 8 GB, DDR2 800/667/533 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
**When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots
2 x PCIe 2.0 x16 - Single VGA mode: x16 - SLI mode: Hardware ready for x16, x16
2 x PCIe x1
2 x PCI 2.2
Scalable Link Interface (SLI™)
Support two identical NVIDIA SLI-Ready graphics cards (Hardware ready for x16, x16)
Storage
Southbridge
1 xUltraDMA 133/100/66/33
4 xSATA 3 Gb/s ports NVIDIA MediaShield™ RAID: Support RAID 0,1,0+1,5,JBOD span cross Serial ATA drives
LAN
NVIDIA nForce® 750i SLI built-in Gigabit MAC with external PHY
Audio
Realtek ALC883 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports
Support Jack-Sensing, Enumeration, Multi-streaming
IEEE 1394
VIA6308P controller supports 2 x 1394a ports (one at mid-board; one at back panel)
USB
8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
ASUS Unique Features
ASUS Power Saving Solution
- ASUS EPU (Energy Processing Unit)
- ASUS AI Nap
- ASUS AI Gear 3 (ASUS EPU Utility)
ASUS Quiet Thermal Solution
- ASUS Fanless Design: Heatsink solution
- ASUS Q-Fan 2
- ASUS Optional Fan for Water-cooling or Passive-Cooling only

ASUS EZ DIY
- ASUS Q-Connector
- ASUS Q-Shield
- ASUS O.C. Profile
- ASUS AI Direct Link
- ASUS CrashFree BIOS 2
- ASUS EZ Flash 2
Overclocking Features
Intelligent overclocking tools
- AI Overclocking (intelligent CPU frequency tuner)
Precision Tweaker 2
- vDIMM: 64 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 0.00625V increment
- vChipset 29-step Chipset voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 133MHz up to 750MHz at 1MHz increment
- Memory tuning from 400 MHz up to 2600 MHz
- PCI Express frequency tuning from 100MHz up to 130MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
Multi-language BIOS
ASUS MyLogo 2
Back Panel I/O Ports
1 x Parallel
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x IEEE 1394a
1 x LAN(RJ45) port
4 x USB 2.0/1.1
8 -Channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
1 x 24 Power connector
Front panel audio connector
Chassis Intrusion connector
CD/AUX audio in
System Panel
BIOS
8 Mb Flash ROM
DMI 2.0
PnP
WfM 2.0
SM BIOS 2.4
Award BIOS
ASUS EZ Flash 2
ASUS CrashFree BIOS 2
Manageability
WfM 2.0,DMI 2.0,WOL/WOR by PME,WOR by Ring,PXE,AI NET2 WO USB/KB/MS
Accessories
SLI connector
SATA cables
IDE cable
FDD cable
ASUS Q-shield
2-port USB 2.0 module
2 in 1 ASUS Q-Connector kit
1 x Optional Fan for Water-Cooling or Passive-Cooling only
User's manual
Support Disc
Drivers
ASUS PC Probe II
ASUS AI Suite
Anti-virus software (OEM version)
ASUS Update
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.5 cm )
