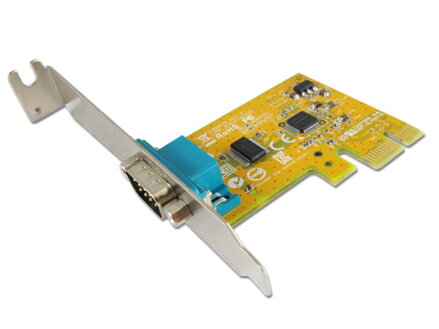

SUNIX SER6427A, PCI-E x1 RS232 radič low profile

Specifications
General
Interface RS-232
Controller SUNIX SUN2212 (16C950 UART Compatible)
BUS PCI Express Spec 2.0, Single-Lane (x1)
IRQ & IO Assigned by System

Serial Communication
Interface RS-232
No. of Port 1-port
FIFO 128byte Hardware
Signal DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Baud rate 50bps ~ 115.2Kbps
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB Connector DB9 Male

Driver Support
Windows Client XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server 2003 / 2008 / 2012 / 2016 (X64)
Windows Embedded Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009
Linux: Linux 2.x / 3.x / 4.x
DOS
FreeBSD: FreeBSD 5.3~5.5 / 6.0~6.4
QNX QNX 6.3.2/6.4.0

Regulatory Approvals
Hardware CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
FCC Part 15 Class B, BSMI: CNS13438, RoHS
Software Microsoft WHQL Windows
Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Environment
Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension
PCB Dimension 65 x 52 mm
Bracket Standard 121 mm
Bracket Space 1
