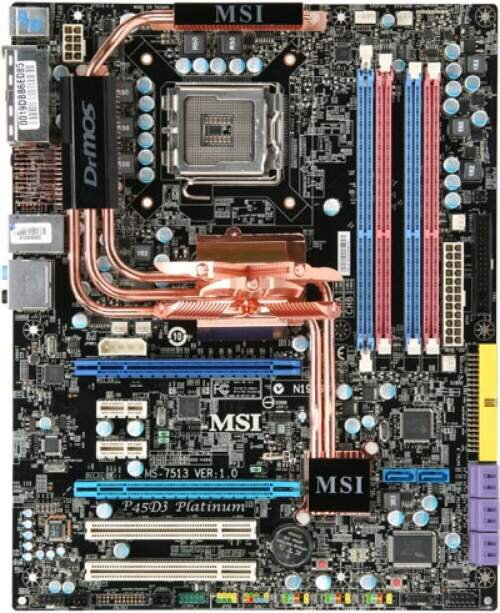

MSI P54D3 Platinum, MS-7513 VER:1.0 mainboard

CPU

• Supports Intel® Core 2 Extreme/Core 2 Quad/Core 2 Duo based processors in LGA775 package.
• Supports Intel® Yorkfield, Wolfdale in the LGA775 package.
• Supports FSB 1600* (OC)/1333/1066/800 MHz.
• Support VRD 11.1 standard.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® P45 Chipset
- Supports FSB 800/1066/1333/1600* (OC) MHz.

• Intel® ICH10R Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 12 ports.
- 6 SATAII ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.
- Serial ATA RAID 0/1/5/10.
- Integrated AHCI controller.

Main Memory

• Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600* (OC) DRAM, 8GB Max

Slots

• Two PCI Express x16 slots (PCI Express Bus SPEC V2.0 compliant; supports CrossFire Technology)
- When using two PCIE x16 slots, the PCIE x16 lanes will auto arrange from x16/ x0 to x8 x8.
• Two PCI Express x1 slots. (support PCI Express Bus specification v1.0a compliant)
• Two 32-bit v2.3 master PCI bus slots.
- Support 3.3v/5v PCI bus interface.

On-Board IDE/SATA

• One Ultra DMA 66/100/133 IDE controller integrated in JMicron® 363.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.

• SATAII controller integrated in ICH10R/JMicron® 362/363 chipset
- Up to 3Gb/s transfer speed.
- Supports six SATAII ports by ICH10R
- Supports two SATAII ports by JMicron 363, support SATA RAID 0/1/JBOD.
- Supports one eSATA ports by JMicron 362.
- Supports AHCI controller with SATA RAID 0/1/5/10 by ICH10R.
MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio

• Chipset integrated by Realtek® ALC888/888T
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec
- Supports VoIP Card (for ALC888T only)

LAN

• Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111C.

IEEE1394 / FireWire

• JMicron® 381 chipset
- Supports up to two 1394 ports. (Rear panel x1, pinheader x1)
- Transfer rate is up to 400Mbps.

Internal I/O Connectors

- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- 4-pin ATX 12V VGA connector
- CPU / System x 5 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x chasis intrusion connector
- 1 x serial port pinheader
- 3 x USB 2.0 connectors
- 1 x Floppy disk drive connector
- 8 x Serial ATAII connectors
- 1 x ATA133 connector
- 1 x IEEE1394 connector support additional 1 port
- 1 x GreenPower Genie connector
- 1 x Reset Button
- 1 x Power Button
- 1 x SPDIF-out connector
- 1 x VoIP card connector (optional)
- 1 x TPM module connector
