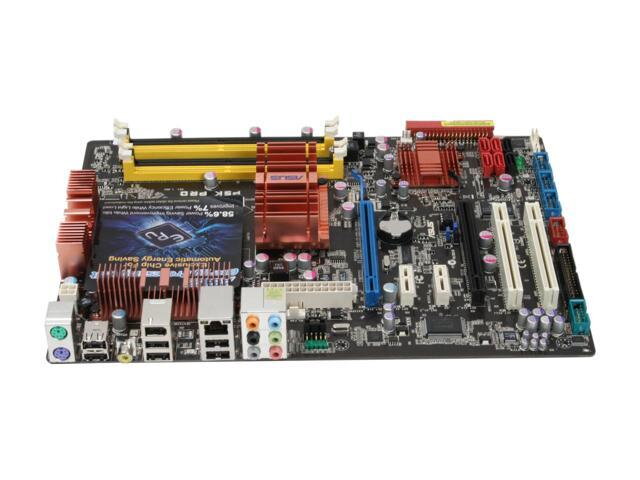

ASUS P5K Pro green

Supported CPU

CPU Socket Type
LGA 775

CPU Type
Core 2 Quad / Core 2 Extreme / Core 2 Duo

FSB
1333/1066 MHz

Chipsets

Chipset
Intel P35

South Bridge
Intel ICH9R

Onboard Video

Onboard Video Chipset
None

Memory

Number of Memory Slots
4×240pin

Memory Standard
DDR2 1066

Maximum Memory Supported
8GB

Channel Supported
Dual Channel

Expansion Slots

PCI Express x16
2 x PCIe x16 (blue @ x16 mode, black @ x4 or x1 mode) supports CrossFire Technology

PCI Express x1
2 x PCI Express x1

PCI Slots
2 x PCI Slots

Storage Devices

PATA
1 x ATA100 2 Dev. Max

SATA 3Gb/s
6 x SATA 3Gb/s

SATA RAID
0/1/5/10

Onboard Audio

Audio Chipset
Realtek ALC883

Audio Channels
8 Channels

Onboard LAN

LAN Chipset
Marvell 88E8056

Max LAN Speed
10/100/1000Mbps

Rear Panel Ports

PS/2
2

USB 1.1/2.0
6 x USB 2.0

IEEE 1394
1 x IEEE 1394a

S/PDIF Out
1 x Coaxial

Audio Ports
6 Ports

Internal I/O Connectors

Onboard USB
3 x USB connectors support additional 6 USB ports

Onboard 1394
1 x 1394a

Physical Spec

Form Factor
ATX

Dimensions (W x L)
12.0" x 8.6"

Power Pin
24 Pin

Features

Features
LGA775
Intel Core 2 Processor Ready
Intel P35 Chipset
ASUS Super Memspeed Technology
ASUS EPU
ASUS 3rd Generation 8-Phase Power Design
Precision Tweaker 2
ATI CrossFire Technology
IEEE 1394a interface
High Definition Audio
AI Nap
Q-Shield
O.C. Profile
CrashFree BIOS 3
EZ Flash 2
Noise Filter
MyLogo3
S/PDIF-out on Back I/O Port
Uses 100% All High-quality Conductive Polymer Capacitors!
ASUS two-slot thermal design (ASUS exclusive)
C.P.R. (CPU Parameter Recall)
GreenASUS

Packaging

Package Contents
P5K PRO
Rear I/O Panel Shield

Physical Spec

Certified for Windows Vista
