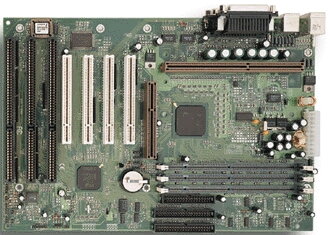

QDI Legend V i440LX mainboard, Slot 1

MODEL
QDI-P6I440LX Legend V
CHIPSET
Intel 440LX chipset
CPU
Intel Pentium® II Processor 233/266/300/333 MHz
BUS TYPE
4 PCI Local bus slots
3 ISA bus slots
1 AGP (Accelerated Graphic Port) slot
SYSTEM MEMORY
Three 168pin DIMM sockets
Support up to 384MB SDRAM
Support up to 768MB EDO DRAM
BIOS
Award Flash BIOS with Plug and Play ready
DMI compliance and built-in NCR 53C810 BIOS support
ON BOARD IDE
Two Bus Master IDE ports
Support up to PIO mode 4 and DMA mode 2
Support Ultra DMA/ ATA
I/O FEATURE
Two high speed serial ports (16550 Fast UART compatible)
One enhanced parallel port (SPP/EPP/ECP support)
One floppy port supports up to 2 floppy drives (360K/720K/1.2M/1.44M/2.88M)
On-board two USB connectors
Support IrDA infrared
On-board PS/2 mouse and PS/2 keyboard connectors
GREEN FUNCTION
Support ACPI (Advanced Configuration Power Interface) compliance
Three Green mode support: Doze, Standby and Suspend
ADVANCED FEATURE
SpeedEasy for jumperless CPU upgrade or jumper emulation mode
Intelligent Monitoring System (LM78) for system voltages, temperature, chassis intrusion and FAN speed (optional)
Support LS-120 Floppy drive
Multi-boot support for Floppy, IDE, SCSI, LS-120, CD-ROM, etc.
On board switching voltage regulator (support 1.8V to 3.5V)
Support ECC (Error Checking and Correction)
Support LDCM (LANDesk Client Manager) software (optional)
Support Windows 95 software power shutdown
Support system wake-up by Modem Ring-On and Alarm-On
Support internal and external modem ring power-on
BOARD SIZE
305mm X 208mm
