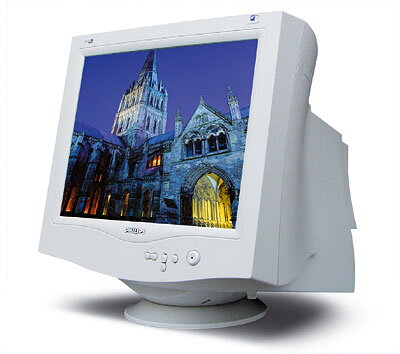

PHILIPS 107B30/40C

Product Number 107B30 (Mist White)
107B33 (Stealth Black)
Technical Specifications
CRT
• Size (inch/cm) 17"/ 46 cm (16.0" VIS)
• Deflection Angle (degrees) 90°
• Dot Pitch 0.25 mm
• Horizontal Pitch 0.21 mm
-Tube Type REAL FLAT, Flat Shadow Mask, High
Contrast,Anti-Glare, Anti-Static,
Anti-Reflection, Light Transmission 45%
• Phosphor P22
• Recom. Display Area(mm) 306 x 230 mm
• Recom. Display Area(inch) 12.0" x 9.0"
• Max. Display Area(mm) 325 x 244 mm
• Max. Display Area(inch) 12.8" x 9.6"
Scanning
• Horizontal Scanning 30 - 86kHz
• Vertical Scanning 50 - 160Hz
Video
• Video Dot Rate 175MHz
• Input Impedance
-Video 76Ω
-Sync 2.2kΩ
• Input Signal Levels 0.7 Vp-p
• Sync Input Signal Separate Sync
Composite Sync
• Sync Polarities Positive and Negative
White Color Temperature
Chromaticity CIE Coordinates:
• at 9300 K: x=0.283, y=0.297
• at 6500 K: x=0.313, y=0.329
Resolution and Preset Modes
• Max. Resolution 1600 x 1200
• Recom. Resolution 1024 x 708
• 16 user Definable Modes
• 35 Factory Preset Modes:
Plug and Play Compatibility
• Display Data Channel DDC 2B (VESA)
• Microsoft®,Windows® 95/98/Me and 2000/NT Compatible
Power Management
Complies with EPA Energy Star, and NUTEK Specifications
• Operation (typ.) 73 W
• Suspend/Stand-By Mode (typ.) < 3 W
• Off Mode/Deep Sleep < 3 W
Low-Emission Characteristics
• Complies with MPR-II Specifications
Monitor Controls and Functions
• Main 5-Button OSD
Brightness +/- Direct Access
Contrast +/- Direct Access
• OSD Language (English, Spanish, French,
German, Italian), Zoom, Horiz/Vert
Position and Size, Pincushion, Balanced,
Trapezoid, Parallelogram, Color, Reset
Degauss, Moire, Serial Number, Resolution,
Frequency
• LightFrame™2 On-screen brightness and sharpness boost
for photos and videos, automatically or in
user selectable windows. Compatible with
Windows 95/98/Me/2000 and MacOS 8
and higher. Software in English, French,
German, Spanish, Italian, Portuguese,
Dutch, Chinese and Korean (for Windows
version) and English, German, French,
Spanish (for MacOS). Functionality for
the MacOS version differs from the
Windows version.
Connections and Cables
• Connections
-Video 15-pin D-Sub Input
• Cables D-Sub Video (fixed) and Power Cord
Regulatory Approvals
• TCO '99 107B30 • NUTEK, Energy Star
• TCO '95 107B33 • MPR-II Low Emission
• TüV/GS,TüV-Ergo • FCC-B, UL, CSA, DHHS
• SEMKO, Poland-B sign, C-Tick • CE, BCIQ, PSB
Physical Specifications
• UPC Code 107B30 0 37849 91545 5
107B33 0 37849 92140 1
• Unit Dimensions (WxHxD) 15.7" x 16.1" x 16.5"
399 x 410 x 419 mm (incl base)
15.7" x 14.7" x 16.5"
399 x 373 x 419 mm (excl base)
• Unit Weight 36.4 lbs./16.5 kg
• Carton Dimensions (WxHxD) 21.90" x 21.25" x 20.47"
518 x 496 x 520 mm
• Carton Weight 41.9 lbs./19.0 kg
• Power Supply 100 - 240 VAC, 50/60Hz
• Temperature (operating) 0°C to +40°C/ 32° to 104°F
• Temperature (storage) -25°C to +65°C/ -13° to 149°F
• Relative Humidity 5% to 95%
• MTBF (excl. CRT) > 75,000 H
Optional Accessories
• USB Hub Option Type PCUH411
• Multimedia Base Option Type 6G3B11
• Mac Adapter Upon Request via Tech Support
Carton contains: 107B30 Monitor, power cord, and user's manual on CD.
INTERNET ADDRESS: http://www.philips.com
TECHNICAL SUPPORT: (877) 835-1838 (USA)
(903) 242-4804 (outside USA)
107B33
Resolution H.freq V.freq
640 x 350 31.5(kHz) 70(Hz)
640 x 350 37.9 85
640 x 480 31.5 60
640 x 480 37.9 72
640 x 480 37.5 75
640 x 480 43.3 85
640 x 480 50.6 100
720 x 400 31.5 70
720 x 400 37.9 85
800 x 600 37.9 60
800 x 600 48.1 72
800 x 600 46.9 75
800 x 600 53.7 85
800 x 600 63.9 100
832 x 624 49.7 75
Resolution H.freq V.freq
1024 x 768 48.4 60
1024 x 768 56.5 70
1024 x 768 60.0 75
1024 x 768 68.7 85
1152 x 864 67.5 75
1152 x 864 77.1 85
1152 x 870 68.7 75
1152 x 900 71.8 76
1280 x 960 60.0 60
1280 x 960 85.9 85
1280 x 1024 64.0 60
1280 x 1024 80.0 75
1600 x 1200 75.0 60
1600 x 1200 81.3 65
Specifications subject to change without notice.
Printed in the U.S.A., ©2002 Philips Consumer Electronics Co.A Division of Philips Electronics North America Corp.We recommend using 1024 x 768 at 60Hz non-interlaced mode for the best picture quality.As an Energy Star partner, Philips has determined th at this product meets the Energy Star guidelines for energy efficiency. Microsoft and Windows are registered trademarks of Microsoft Corporation. Macintosh is a registered trademark of Apple Computer, Inc.
