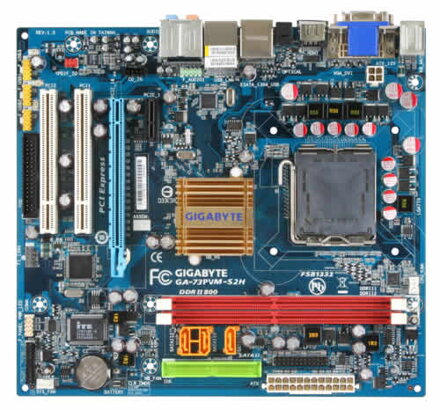

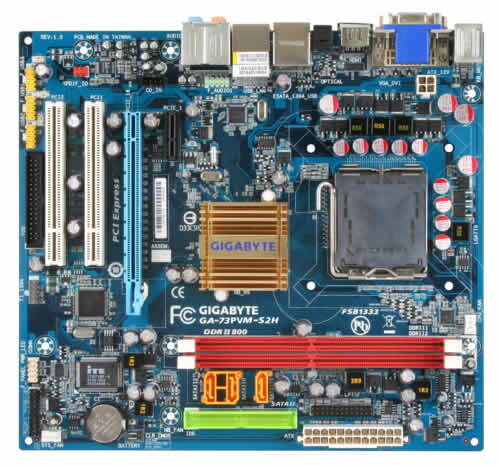

Gigabyte GA-73PVM-S2H

CPU
Support for an Intel® Core™ 2 Extreme processor/Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/ Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/ Intel® Pentium® 4processor/Intel® Celeron® processor in the LGA 775 package
**L2 cache varies with CPU
Front Side Bus
1333/1066/800 MHz FSB
Chipset
NVIDIA® GeForce 7100/nForce 630i
Memory
2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
Support for DDR2 800/667/533 MHz memory modules
Onboard Graphics
Integrated in the NVIDIA® GeForce 7100/nForce 630i chipset
Audio
Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In
LAN
RTL 8211B chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
Storage Interface
NVIDIA® GeForce 7100/nForce 630i chipset:
3 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2) supporting up to 3 SATA 3Gb/s devices
1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 0+1
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Integrated in the NVIDIA® GeForce 7100/nForce 630i chipset
Up to 10 USB 2.0/1.1 ports (4 on the back panel, 6 via the USB brackets connected to the internal USB headers)
IEEE 1394a
T.I. TSB43AB23 chip
Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
3 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In/Out header
1 x IEEE 1394a header
3 x USB 2.0/1.1 headers
1 x parallel port header
1 x serial port header
1 x chassis intrusion header
1 x power LED header
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port (Note 1)
1 x HDMI port
1 x optical S/PDIF Out connector
1 x eSATA 3Gb/s port
1 x IEEE 1394a port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
iTE IT8718 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control
BIOS
1 x 4 Mbit flash
Use of licensed AWARD BIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Download Center
Support for Q-Flash
Support for EasyTune (Note 2)
Support for Xpress Install
Support for Xpress Recovery2
Support for Virtual Dual BIOS
Bundle Software
Norton Internet Security (OEM version)
Operating System
Support for Microsoft® Windows Vista/XP
Form Factor
Micro ATX Form Factor; 24.4cm x 22.0cm
Note
(Note 1)The DVI-D port does not support D-Sub connection by adapter.
(Note 2)Available functions in Easytune may differ by motherboard model.
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
