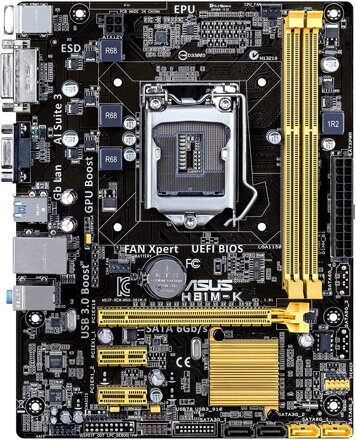

ASUS H81M-K

SPECS
GENERAL
Chipset TypeIntel H81 Express
Compatible ProcessorsPentium, Celeron, Core i5, Core i3, Core i7
Processor SocketLGA1150 Socket
Max Processors Qty1
ManufacturerAsus
EXPANSION / CONNECTIVITY
Expansion Slots1 x CPU
2 x DIMM 240-pin
1 x PCIe x16
2 x PCIe 2.0 x1
Storage InterfacesSATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices
SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices
Internal Interfaces4 x USB 2.0 - header
1 x audio - header
1 x SPDIF out - header
Power Connectors4-pin ATX12V connector, 24-pin main power connector
PROCESSOR
Max Supported Qty1
Installed Qty0
INTERFACE PROVIDED
Qty1, 2
TypeDVI, LAN (Gigabit Ethernet), PS/2 keyboard, PS/2 mouse, USB 2.0, USB 3.0, VGA, audio line-in, audio line-out, microphone
Connector Typemini-jack
NETWORKING
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Network ControllerRealtek RTL8111G
NetworkGigabit Ethernet
PROCESSOR / MEMORY / STORAGE
Max Supported Qty1
MEMORY
Max Allocated RAM Size1024 MB
MISCELLANEOUS
Compliant StandardsPlug and Play, ACPI 2.0a, ErP Ready
Product Typemotherboard
AUDIO
Audio CodecRealtek ALC887
Compliant StandardsHigh Definition Audio
VIDEO
Video Outputgraphics adapter (CPU required)
GRAPHICS
Max Allocated RAM Size1024 MB
AUDIO OUTPUT
Compliant StandardsHigh Definition Audio
Typesound card
Audio CodecRealtek ALC887
AudioHigh Definition Audio (8-channel)
RAM
Max Supported Size16 GB
FeaturesIntel Extreme Memory Profiles (XMP), dual channel memory architecture
LAN
Network InterfacesGigabit Ethernet
Network ControllerRealtek RTL8111G
SUPPORTED RAM
Bus Clock1600 MHz, 1333 MHz, 1066 MHz
Registered or BufferedUnbuffered
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size16 GB
TechnologyDDR3
Supported RAM Integrity CheckNon-ECC
HEADER
BrandASUS
Product LineASUS
ModelH81M-K
Packaged Quantity1
CompatibilityPC
MAINBOARD
Form Factormicro ATX
Processor SocketLGA1150 Socket
Compatible ProcessorsCeleron, Core i3, Core i5, Core i7, Pentium
Chipset TypeIntel H81 Express
Supported RAM TechnologyDDR3 SDRAM
Supported RAM Speed1066 MHz, 1333 MHz, 1600 MHz
Supported RAM Integrity Checknon-ECC
Supported RAM (Registered or Buffered)unbuffered
RAM Slots2 DIMM slots
Power Connectors24-pin main power connector, 4-pin ATX12V connector
MAINBOARD FEATURES
BIOS FeaturesACPI 2.0a support, ASUS EZ Flash 2, ASUS Quiet Thermal Solution, DMI 2.0 support, Multilingual BIOS, SMBIOS 2.7 support, UEFI BIOS, WfM 2.0 support
Sleep / Wake Upwake on LAN (WOL)
Hardware FeaturesASUS Anti-Surge Protection, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, ASUS Q-Design, CrashFree BIOS 3, Fanless Design Heatsink, GPU Boost, Intel Clear Video HD Technology, Intel Extreme Memory Profile (XMP) support, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Turbo Boost Technology 2.0, Q-Slot, USB 3.0 Boost, audio jack detect technology, jack retasking
INTERFACES
StorageSerial ATA-300, Serial ATA-600
Storage Ports2 x SATA-600, 2 x SATA-300
USB 3.0 / FireWireUSB 3.0
USB / FireWire Ports Configuration (Active)2 x USB 3.0 + 2 x USB 2.0
EXPANSION SLOTS
Total Qty1, 2
TypeCPU, DIMM 240-pin, PCIe 2.0 x1, PCIe x16
DIMENSIONS & WEIGHT
Width8.9 in
Depth6.9 in
SOFTWARE
Software IncludedASUS AI Charger, ASUS AI Suite III, ASUS EZ Flash 2, ASUS EZ Update, drivers & utilities
VIDEO MEMORY
Max Allocated RAM Size1024 MB
STORAGE INTERFACES
InterfaceSerial ATA-300, Serial ATA-600
Connector(s)2 x 7pin Serial ATA
Supported Devices Qty2
INTERNAL INTERFACES
TypeSPDIF out, USB 2.0, audio
Connector Typeheader
Qty1, 4
FEATURES
Hardware FeaturesJack retasking, ASUS Anti-Surge Protection, ASUS Q-Design, GPU Boost, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP) support, ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, Fanless Design Heatsink, USB 3.0 Boost, Intel Rapid Start Technology, Intel Smart Connect Technology, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video
BIOS FeaturesDMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, UEFI BIOS, SMBIOS 2.7 support
Sleep / Wake UpWake on LAN (WOL)GENERAL
ManufacturerAsus
