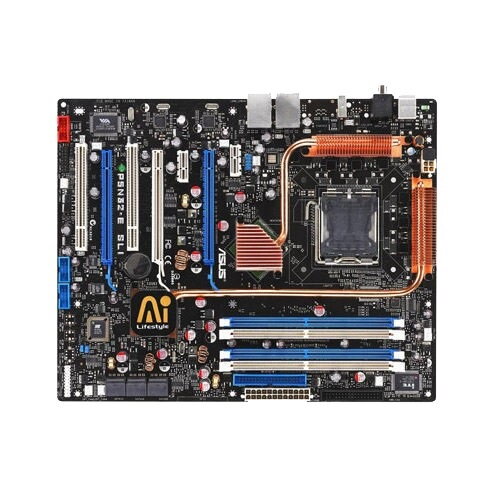

ASUS P5N32-E SLI LGA775

CPU
Intel Socket 775 Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4/Celeron Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® next generation 45nm CPU
* Refer to www.asus.com for Intel CPU support list
Chipset
NVIDIA nForce 680i SLI

Front Side Bus
1333/1066/800/533 MHz 1333**(** available when CPUs are ready for 1333MHz FSB)
Memory
4 x DIMM, Max. 8 GB, DDR2 800/667/533 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
Expansion Slots
2 x PCIe x16 , support NVIDIA® SLI™ technology, at full x16, x16 speed (blue). x8 speed (white)
1 x PCIe x1
2 x PCI 2.2
Scalable Link Interface (SLI™)
Support two identical NVIDIA SLI-Ready graphics cards
Storage
Southbridge
1 xUltraDMA 133/100/66/33
6 xSATA 3 Gb/s ports
NVIDIA MediaShield™ RAID supports RAID 0, 1, 0+1, 5 and JBOD span cross Serial ATA drives
LAN
NVIDIA nForce® 680i SLI™ built-in dual Gigabit MAC with external Marvell PHY, support NVIDIA DualNet® technology
Audio
SupremeFX Audio Card
ADI 1988B 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports
Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
DTS® Connect
IEEE 1394a
VIA6308P controller supports 2 x 1394a ports
USB
10 USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)
Overclocking Features
Intelligent overclocking tools
- AI Overclocking (intelligent CPU frequency tuner)
- ASUS AI Booster Utility
- ASUS AI NOS (Non-delay Overclocking System)
- ASUS O.C. Profile: overclocking configuration-sharing tool
Overclocking Protection
- COP EX (Component Overheat Protection - EX)
Special Features
ASUS MyLogo 3
ASUS EZ Flash 2
ASUS CrashFree BIOS 2
ASUS Music Alarm
ASUS Q-Connector
ASUS Q-Fan 2
Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out
1 x IEEE 1394a
2 x LAN(RJ45) port
4 x USB 2.0/1.1
Internal I/O Connectors
3 x USB connectors supports additional 6 USB 2.0 ports
1 x Floppy disk drive connector
1 x IDE connector
6 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
24 -pin ATX Power connector
Front panel audio connector
Chassis Intrusion connector
System Panel Connector
BIOS
8 Mb Flash ROM
DMI 2.0
PnP
WfM 2.0
SM BIOS 2.3
Award BIOS
Multi-language BIOS
Manageability
WOL by PME,WOR by PME,Chasis Intrusion,PXE
Accessories
User's manual
SLI bridge
USB2.0 module
IEEE1394a module
x UltraDMA 133/100/66 cable
x Floppy disk drive cable
x SATA cable
SATA power cable
USB2.0 port module
3 in 1 Q-connector (USB, 1394, system panel; Retail version only)
Support Disc
Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update
ASUS AI Booster
NVIDIA MediaShield™ RAID
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5cm x24.5cm )
