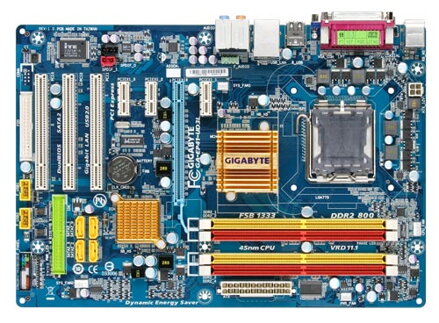

Gigabyte GA-EP41-UD3L

CPU
Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor/Intel® Celeron®processor in the LGA775 package
(Go to GIGABYTE's website for the latest CPU support list.)
L2 cache varies with CPU
Front Side Bus
1333/1066/800 MHz FSB
Chipset
North Bridge: Intel® G41 Express Chipset
South Bridge: Intel® ICH7
Memory
4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory
Dual channel memory architecture
Support for DDR2 1066(OC)/800/667 MHz memory modules
(Go to GIGABYTE's website for the latest memory support list.)
* Because of Intel chipset limitation, please use single-side memory module if four memory modules are to be installed.
Audio
Realtek ALC888 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out
Support for CD In
LAN
RTL8111C/D(L) chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16
3 x PCI Express x1 slots
3 x PCI slots
Storage Interface
South Bridge:
1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Integrated in the South Bridge
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x power LED header
1 x chassis intrusion header
1 x clearing CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
1 x serial port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
iTE IT8718 chip
H/W Monitoring
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
Support for @BIOS
Support for Q-Flash
Support for Virtual Dual BIOS
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
Support for Dynamic Energy Saver Advanced
Support for Time Repair
Support for Q-Share
Form Factor
ATX Form Factor; 30.5cm x 21.0cm
